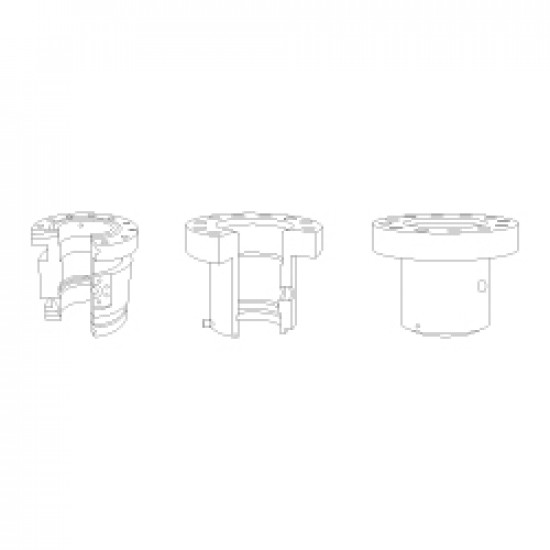

Actual product may vary from image shown.
Casing Head
- Stock: Ask for Lead Time
- Model: Casing Head
Product Views: 11707
$0.00
Option
| Top Flange Size (in) | Top Flange Working Pressure (psi) | Bottom Connection (in) | Minimum Bore (in) | Maximum Suspended Casing Size (in) |
|---|---|---|---|---|
| 7 1/16 | 2000 | 7 | 6 5/16 | 5 |
| 7 1/16 | 3000 | 7 5/8 | 7 1/8 | 5 |
| 7 1/16 | 5000 | 7 5/8 | 7 1/8 | 5 |
| 11 | 2000 | 8 5/8 | 8 | 7 |
| 11 | 3000 | 8 5/8 | 8 | 7 |
| 11 | 5000 | 8 5/8 | 8 | 7 |
| 11 | 2000 | 9 5/8 | 9 | 7 5/8 |
| 11 | 3000 | 9 5/8 | 9 | 7 5/8 |
| 11 | 5000 | 9 5/8 | 9 | 7 5/8 |
| 11 | 2000 | 10 3/4 | 9,9 | 8 5/8 |
| 11 | 3000 | 10 3/4 | 9,9 | 8 5/8 |
| 11 | 5000 | 10 3/4 | 9,9 | 8 5/8 |
| 13 5/8 | 2000 | 11 3/4 | 11 | 9 5/8 |
| 13 5/8 | 3000 | 11 3/4 | 11 | 9 5/8 |
| 13 5/8 | 2000 | 13 3/8 | 12 1/2 | 9 5/8 |
| 13 5/8 | 3000 | 13 3/8 | 12 1/2 | 9 5/8 |
| 13 5/8 | 5000 | 13 3/8 | 12 1/2 | 9 5/8 |
| 16 3/4 | 2000 | 16 | 15 1/4 | 10 3/4 |
| 16 3/4 | 3000 | 16 | 15 1/4 | 10 3/4 |
| 16 3/4 | 5000 | 16 | 15 1/4 | 10 3/4 |
| 21 1/4 | 2000 | 20 | 19 3/16 | 13 3/8 |
| 20 3/4 | 3000 | 20 | 19 3/16 | 13 3 |
