Actual product may vary from image shown.

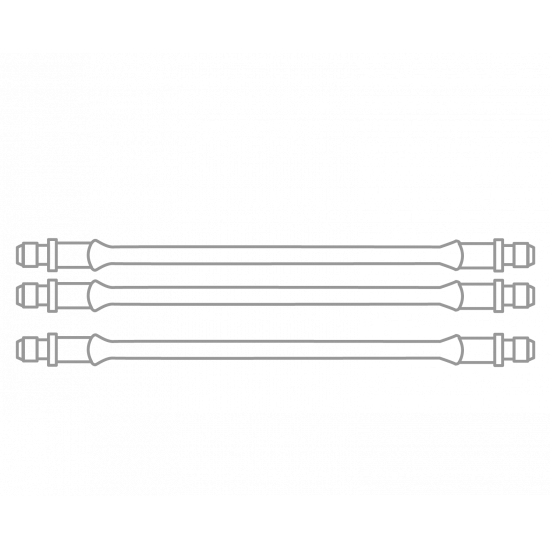

Sucker Rod Sucker Rod
- Stock: Ask for Lead Time
- Model: Sucker Rod
Product Views: 6089
$0.00
Option
| Size (in.) | Rod body diameter (in.) | External Thread Shoulder Diam. (ln.) | Wrench width (in.) | Wrench length (in.) | Rod length (ft) | Upset flange diameter (in.) | Type | Manufacture material | Minimum tensile strenght (lbs.) | Maximum tensile strenght (lbs.) |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | K | API 11B Carbon steel, alloy steel, and special-alloy steel with 1.65 to 2.00% nickel alloy (high-strength, good plasticity, toughness, anti-corrosive) | 90,000 | 115,000 |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | C | API 11B Carbon steel, alloy steel, and alloy steel (mid-strength, good plasticity, toughness) | 90,000 | 115,000 |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | D | API 11B Carbon steel, alloy steel, and special-alloy steel (high strength, better plasticity and long service life after heat treatment) | 115,000 | 140,000 |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | KD | API 11B with Standard SY/T5029-2006 covers Fine alloy steel containing different amount of Cr-Ni-Mo (high-strength, good plasticity, toughness, anti-corrosive) | 115,000 | 140,000 |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | HL | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 5/8 | 0.625 | 0.750 | 0.875 | 1.250 | 25 ; (30 upon special request) | 1.219 | HY | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | K | API 11B Carbon steel, alloy steel, and special-alloy steel with 1.65 to 2.00% nickel alloy (high-strength, good plasticity, toughness, anti-corrosive) | 90,000 | 115,000 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | C | API 11B Carbon steel, alloy steel, and alloy steel (mid-strength, good plasticity, toughness) | 90,000 | 115,000 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | D | API 11B Carbon steel, alloy steel, and special-alloy steel (high strength, better plasticity and long service life after heat treatment) | 115,000 | 140,000 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | KD | API 11B with Standard SY/T5029-2006 covers Fine alloy steel containing different amount of Cr-Ni-Mo (high-strength, good plasticity, toughness, anti-corrosive) | 115,000 | 140,000 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | HL | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 3/4 | 0.750 | 1.500 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.406 | HY | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | K | API 11B Carbon steel, alloy steel, and special-alloy steel with 1.65 to 2.00% nickel alloy (high-strength, good plasticity, toughness, anti-corrosive) | 90,000 | 115,000 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | C | API 11B Carbon steel, alloy steel, and alloy steel (mid-strength, good plasticity, toughness) | 90,000 | 115,000 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | D | API 11B Carbon steel, alloy steel, and special-alloy steel (high strength, better plasticity and long service life after heat treatment) | 115,000 | 140,000 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | KD | API 11B with Standard SY/T5029-2006 covers Fine alloy steel containing different amount of Cr-Ni-Mo (high-strength, good plasticity, toughness, anti-corrosive) | 115,000 | 140,000 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | HL | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 7/8 | 0.875 | 1.625 | 1.000 | 1.250 | 25 ; (30 upon special request) | 1.500 | HY | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 1 | 1.000 | 2.000 | 1.000 | 1.500 | 25 ; (30 upon special request) | 1.906 | K | API 11B Carbon steel, alloy steel, and special-alloy steel with 1.65 to 2.00% nickel alloy (high-strength, good plasticity, toughness, anti-corrosive) | 90,000 | 115,000 |
| 1 | 1.000 | 2.000 | 1.000 | 1.500 | 25 ; (30 upon special request) | 1.906 | C | API 11B Carbon steel, alloy steel, and alloy steel (mid-strength, good plasticity, toughness) | 90,000 | 115,000 |
| 1 | 1.000 | 2.000 | 1.313 | 1.500 | 25 ; (30 upon special request) | 1.906 | D | API 11B Carbon steel, alloy steel, and special-alloy steel (high strength, better plasticity and long service life after heat treatment) | 115,000 | 140,000 |
| 1 | 1.000 | 2.000 | 1.313 | 1.500 | 25 ; (30 upon special request) | 1.906 | KD | API 11B with Standard SY/T5029-2006 covers Fine alloy steel containing different amount of Cr-Ni-Mo (high-strength, good plasticity, toughness, anti-corrosive) | 115,000 | 140,000 |
| 1 | 1.000 | 2.000 | 1.313 | 1.500 | 25 ; (30 upon special request) | 1.906 | HL | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 1 | 1.000 | 2.000 | 1.313 | 1.500 | 25 ; (30 upon special request) | 1.906 | HY | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | K | API 11B Carbon steel, alloy steel, and special-alloy steel with 1.65 to 2.00% nickel alloy (high-strength, good plasticity, toughness, anti-corrosive) | 90,000 | 115,000 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | C | API 11B Carbon steel, alloy steel, and alloy steel (mid-strength, good plasticity, toughness) | 90,000 | 115,000 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | D | API 11B Carbon steel, alloy steel, and special-alloy steel (high strength, better plasticity and long service life after heat treatment) | 115,000 | 140,000 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | KD | API 11B with Standard SY/T5029-2006 covers Fine alloy steel containing different amount of Cr-Ni-Mo (high-strength, good plasticity, toughness, anti-corrosive) | 115,000 | 140,000 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | HL | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
| 1-1/8 | 1.125 | 2.250 | 1.500 | 1.625 | 25 ; (30 upon special request) | 2.188 | HY | API 11B with Standard SY/T5029-2006 covers Super-high strength Fine Cr-Ni-Mo alloy steel containing different amount of Ni | 140,000 | 173,339 |
