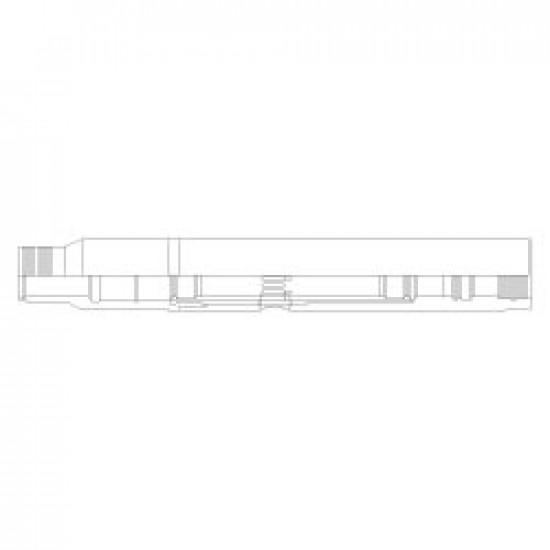

Actual product may vary from image shown.
Sliding Sleeve
- Stock: Ask for Lead Time
- Model: Sliding Sleeve
Product Views: 5844
$0.00
Option
| Size (in.) | Type | Weight (lbs/ft) | Profile | Manufacturing material | Thread type | Minimum internal diameter (in.) | Maximum outside diameter (in.) | Pressure diferencial (psi.) | Temperature (°F) | Setting |
| 2-7/8 | Slider | 6.5 | X | Body AISI 4140 N80; Sleeve 9CR L80 | EUE 8RD Box x Pin | 2,313 | 3,750 | 5,000 | 300 | Down |
| 3-1/2 | Slider | 9.3 | X | Body AISI 4140 N80; Sleeve 9CR L80 | EUE 8RD Box x Pin | 2,813 | 4,500 | 5.000 - 7.500 | 300 | Down |
| 4-1/2 | Slider | 12.75 | R | Body and Sleeve 9CR L80 | Premiun (Specify) | 3,813 | 5,500 | 5.000 - 8.500 | 300 | Up |
