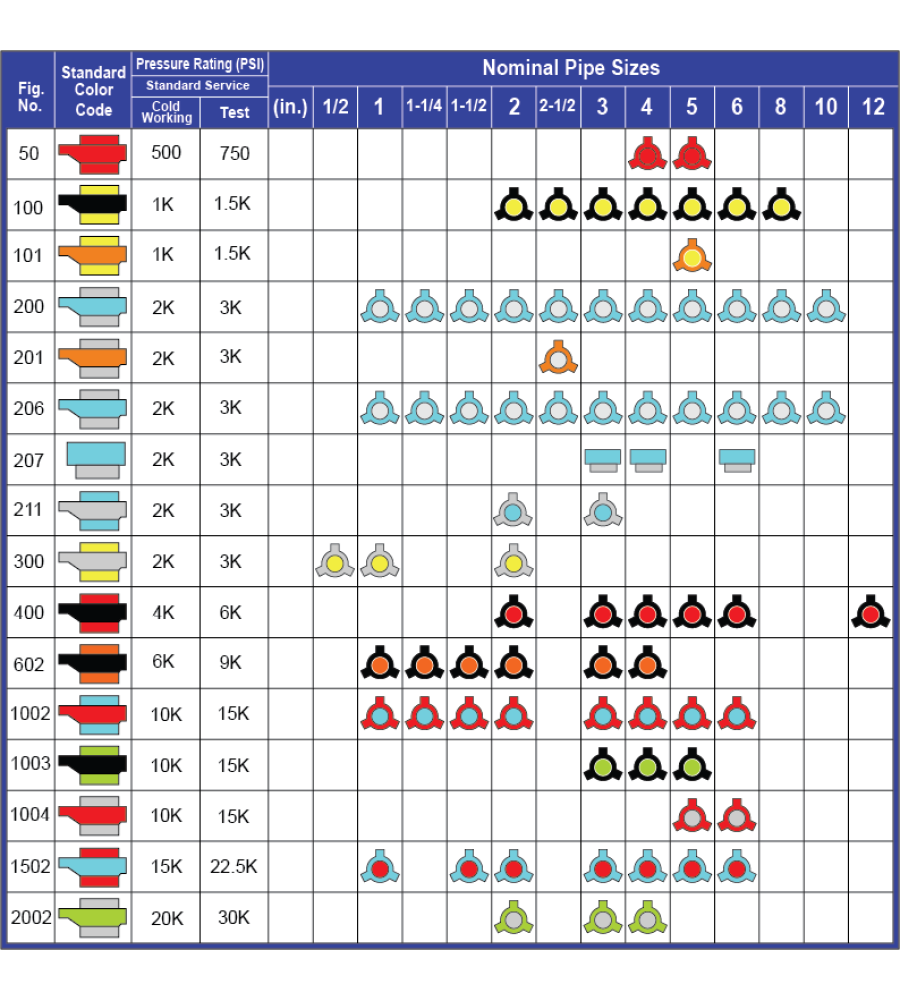

The following hammer unions are the most commonly used in the industrial and oilfield market today:
Figure 100 Hammer Unions are used for low pressure water and oilfield applications .
Their max working pressure is 1,000 psi and it is one of the most affordable ones in the industrial market.
- Color Code: black nut, yellow sub.
- Connection: threaded
Figure 200 Hammer Unions are used for medium pressure water and oilfield applications.
Their max working pressure is 2,000 psi and their price is considered lower compared to the high pressure unions.
- Color Code: blue nut, gray sub
- Connections: threaded
Figure 206 Hammer Unions are used for medium pressure water and oilfield applications.
They are furnished with a BUNA o-ring seal on the male sub.
Their max working pressure is 2,000 psi and their price is considered lower compared to other types.
- Color Code: blue nut, gray sub
- Connection: threaded
Figure 400 Hammer Unions are used for oilfield applications involving medium high pressure.
Such as well control connections, triplex mud pump suction, manifold connections.
Or just anything related to drilling fluid control mud cleaning services.
Their max working pressure is 4,000 psi and their price is considered to be high.
- Color Code: black nut, red sub
- Connections: threaded
- Material: Forged carbon steel
Figure 1002 Hammer Unions are used for oilfield applications involving high pressure.
Such as acidizing, choke & kill lines and cementing.
Their max working pressure is 10,000 psi and their price is considered to be high.
- Color Code: red nut, blue sub
- Connections: threaded
- Material: Forged carbon steel
FIG 1502 Hammer Unions are used for heavy duty high pressure water, mud and all high pressure oilfield applications.
Their max working pressure is 15,000 psi and their price is considered to be high compared to the lower or medium pressure ones.
- Color Code: blue nut, red sub
- Connections: threaded
