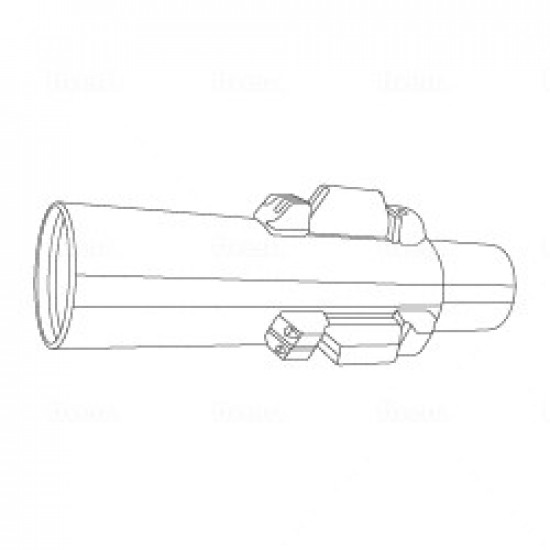

Actual product may vary from image shown.
Tubing Anchor Catcher Tubing Anchor Catcher
- Stock: Ask for Lead Time
- Model: Tubing Anchor Catcher
Product Views: 7092
$0.00
Option
| Casing | Tool | Connections | ||||
| Size (in.) | Weight (lbs/ft.) | Nominal ID (in.) | Tool Series | OD (in.) | ID (in.) | Box x Pin (in.) |
| 4-1/2 | 9.5 | 4.09 | S1 | 3.80 | 2.0 | 2-3/8 EUE |
| 4-1/2 | 11.6 | 4.0 | S2 | 3.72 | 2.0 | 2-3/8 EUE |
| 5-1/2 | 13.0 | 5.04 | S1 | 4.60 | 2.44 | 2-7/8 EUE |
| 5-1/2 | 17.0 | 4.89 | S1 | 4.60 | 2.44 | 2-7/8 EUE |
| 5-1/2 | 17.0 | 4.89 | S2 | 4.38 | 2.50 | 2-7/8 EUE |
| 5-1/2 | 23.0 | 4.67 | S2 | 4.38 | 3.00 | 2-7/8 EUE |
| 7 | 17.0 | 6.53 | S1 | 6.10 | 2.50 | 2-7/8 EUE |
| 7 | 23.0 | 6.33 | S1 | 6.10 | 3.00 | 3-1/2 EUE |
| 7 | 23.0 | 6.33 | S2 | 5.93 | 2.50 | 2-7/8 EUE |
| 7 | 29.0 | 6.18 | S2 | 5.93 | 3.00 | 3-1/2 EUE |
| 7 | 32.0 | 6.09 | S3 | 5.86 | 2.50 | 2-7/8 EUE |
| 7 | 32.0 | 6.09 | S3 | 5.86 | 3.00 | 3-1/2 EUE |
| 7 | 26.0 | 6.276 | SA | 5.94 | 2.50 | 2-7/8 EUE |
| 7 | 29.0 | 6.184 | SA | 5.94 | 3.00 | 3-1/2 EUE |
| 8-5/8 | 20.0 | 8.181 | S1 | 7.75 | 2.50 | 2-7/8 EUE |
| 8-5/8 | 24.0 | 8.097 | S1 | 7.75 | 3.00 | 3-1/2 EUE |
| 9-5/8 | 40.0 | 8.835 | S1 | 8.28 | 3.00 | 3-1/2 EUE |
| 9-5/8 | 43.5 | 8.755 | S1 | 8.28 | 4.00 | 4-1/2 EUE |
| 9-5/8 | 47.0 | 8.681 | S1 | 8.28 | 4.00 | 5-1/2 EUE |
| 9-5/8 | 29.3 | 9.063 | S2 | 8.40 | 3.00 | 3-1/2 EUE |
| 9-5/8 | 36.0 | 8.921 | S2 | 8.40 | 4.00 | 4-1/2 EUE |
| 9-5/8 | 36.0 | 8.921 | S2 | 8.40 | 4.00 | 5-1/2 EUE |
