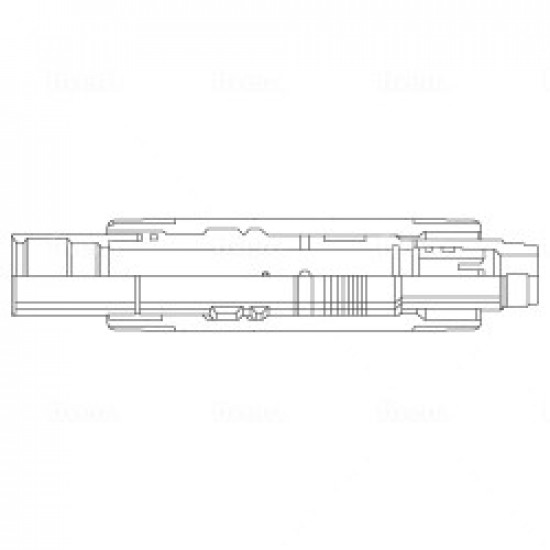

Nipple Profile XN w/ Lock Mandrel
- Stock: Ask for Lead Time
- Model: Nipple Profile XN w/ Lock Mandrel
Product Views: 2863
$0.00
Option
| Tubing | Standard Tubing | Lock Mandrel ID, (in) | ||||
| XN Profile | ||||||
| Size (in.) | Weight (lb/ft.) | ID (in.) | Drift (in.) | Packing Bore | No-Go ID, (in) | |
| 1.660 | 2.3 | 1.380 | 1.286 | 1.250 | 1.135 | 0.62 |
| 1.660 | 2.4 | 1.380 | 1.286 | 1.250 | 1.135 | 0.62 |
| 1.900 | 2.4 | 1.660 | 1.516 | 1.500 | 1.448 | 0.75 |
| 1.900 | 2.76 | 1.610 | 1.516 | 1.500 | 1.448 | 0.75 |
| 1.900 | 2.9 | 1.610 | 1.516 | 1.500 | 1.448 | 0.75 |
| 2.063 | 3.25 | 1.751 | 1,657 | 1.625 | 1.536 | 0.75 |
| 2 3/8 | 4.6 | 1.995 | 1.901 | 1.875 | 1.791 | 1 |
| 2 3/8 | 4.7 | 1.995 | 1.901 | 1.875 | 1.791 | 1 |
| 2 7/8 | 6.4 | 2.441 | 2.347 | 2.313 | 2.205 | 1.38 |
| 2 7/8 | 6.5 | 2.441 | 2.347 | 2.313 | 2.205 | 1.38 |
| 3 1/2 | 9.3 | 2.992 | 2.867 | 2.813 | 2.666 | 1.75 |
| 3 1/2 | 10.2 | 2.992 | 2.797 | 2.750 | 2.635 | 1.75 |
| 4 | 11 | 3.476 | 3.351 | 3.313 | 3.135 | 2.12 |
| 4 1/2 | 12.75 | 3.958 | 3.833 | 3.813 | 3.725 | 2.62 |
| 5 | 13 | 4.494 | 4.369 | 4.313 | 3.987 | 2.62 |
| 5 1/2 | 17 | 4.892 | 4.767 | 4.562 | 4.455 | 3.12 |
