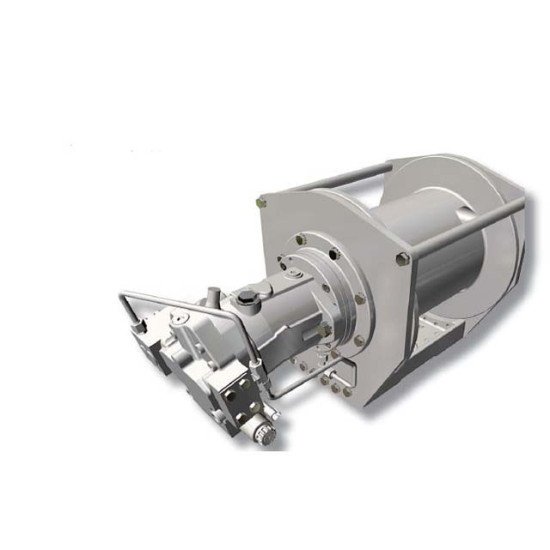

PD15B PLANETARY HOIST 15,000 lb (6,818 kg)

The BRADEN PD15 delivers superior performance and unrivaled durability in a wide range of hoisting applications. The power drum design and patented BRADEN brake valve provide outstanding reliability and control for maximum productivity. Robust winch construction and precision gear manufacturing ensure long-lasting operation. More than 200 standard configurations are available to meet the demanding requirements of mobile and offshore platform cranes, personnel handling systems for drilling and service rigs, and many other applications. Proven performance plus ease of service make the PD15 the first choice for design engineers, operators, and service technicians alike. Features/Benefits: Sealed, high-efficiency planetary reduction gearing provides continuous-duty performance. Shave-finished, crowned gears produce smooth, quiet operation, optimal load-carrying capacity, and ultimately longer gear life. Patented BRADEN brake valve* works in conjunction with the overrunning clutch and springapplied, hydraulically-released multi-disc brake for precise control and fail-safe (3:1 safety factor) load handling. High-efficiency, anti-friction bearings used throughout hoist to ensure long service life. Three-piece drum base for maximum installation versatility.

Product Details
Motor Type	No Letter = Single Or Two-Speed Gear Motor
Gear Ratio	41 - Total Gear Reduction Ratio - 41:1 Ratio
Model Series	B
Max Rating	15 - Maximum Rated First-Layer Line Pull Capacity, Lb. 15,000
Note	* Where No Motor Is Specified, “000” Or Sae Motor Shaft And Bolt Pattern (For Example, “C4C” ) Will Be Provided
Power Drum	PD
Motor Size*	000 - Hydraulic Motor Displacement, Cu Inches/Revolution - 000 Cu In.
Drum Code	05
