Actual product may vary from image shown.

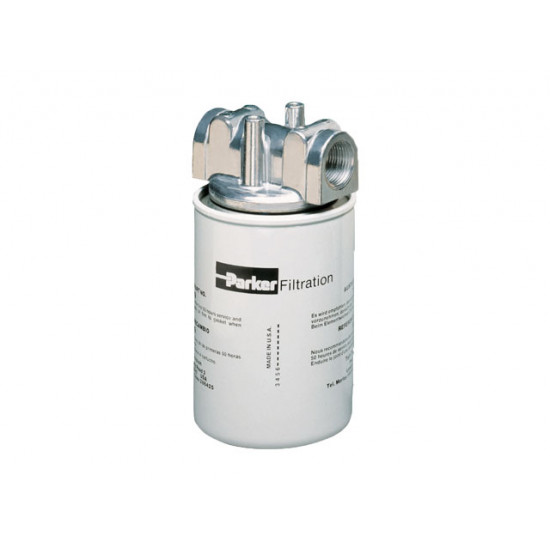

12AT Series Low Pressure Filter
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: 12AT Series Low Pressure Filter
- MPN: 12AT25CN25MMH
Product Views: 1212
$99.72
| Product Details | |
| Nominal Filter Rating | 25 micron |
| Port | 12 SAE |
| Element Collapse Rating | 100 psid minimum |
| Length | None - Single length cannister |
| Nominal Flow Rating | 12 GPM (45 LPM) |
| Operating Temperature | -40F to 225F (-40C to 107C) |
| Gauge Port Location | H - Inlet and outlet, both sides (all ports drilled and tapped) |
| Seals | None - Buna |
| Max Pressure - Non-Fatigue MAOP | 150 psi (10.3 bar) |
| Filter Type | Low Pressure Filter |
| Nominal Filter Micron Rating | 25 micron |
| Replacement Element | 925023 |
| Filter Media Type | Cellulose |
| Filter Media Code | 25C |
| Parker Group | Filtration |
| Ports | MM - SAE-12 |
| Design Safety Factor | 2.5:1 |
| Parker Division | Hydraulic Filter |
| Operating Temperatures | -40°F to 2250F (-400 C to 1070C) |
| Basic Assembly | 12AT - Spin-on (¾" nom.) |
| Cannister Media | 25C* - Cellulose |
| Indicator Symbol | N - None |
| Bypass Setting | 25 - 25 psid |
| Pressure Ratings Maximum Allowable Operating Pressure (MAOP): | 150 psi (10.3 bar) |
| Element Condition Indicators Gauge: | Color coded vacuum |
| Element Condition Indicators Pressure Switch: | Normally open 20 +/- 2 psi 5 Amps @ 24 VDC |
| Element Condition Indicators Vacuum Switch: | Normally open 5" +/- 1" Hg 1.0 Amp @ 120 VAC |
| Shipping Weights (approximate) | 1.6 lbs. |
