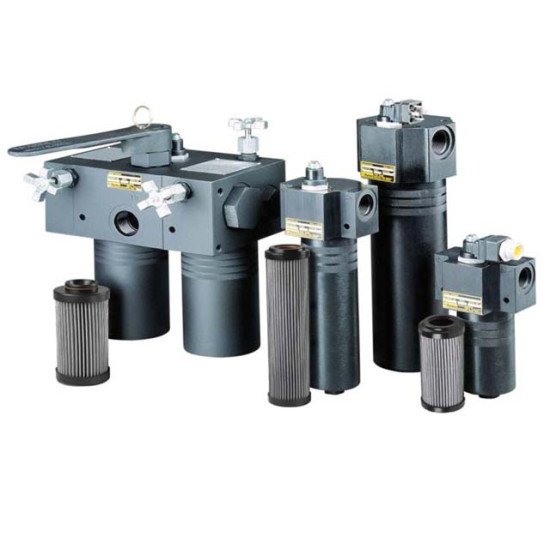

Actual product may vary from image shown.
15P Series Parker 15P Series
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: 15P Series
- MPN: 15P220QHBM2KS124
Product Views: 688
$1,030.52
Applications: Saw mills. Aircraft ground support equipment. Asphalt pavers. Hydraulic fan drives. Power steering circuits. Waste trucks. Cement trucks. Servo control protection. Logging equipment. These application examples have one thing in common...the need for clean hydraulic fluid. Modern high pressure hydraulic systems are demanding. Better controls and long component life are expected. To deliver the high standards of performance, hydraulic components are built with tighter tolerances which increases their sensitivity to contamination. That’s where Parker pressure filters come into play. They filter out ingressed contamination before it jams a valve or scores a cylinder. They block pump generated debris before it gets to servo or proportional valves. Parker pressure filters are a key ingredient in meeting today’s system demands. Put your hydraulic systems in the care of Parker Hydraulic Filter Division. We are committed to designing and building the best filters available to industry. Feature: Wire reinforced Microglass III elements. Multipass tested elements (per ANSI/NFPA T3.10.8.8 R1-1990). Complete element performance data disclosure.
| Product Details | |
| Bypass | K - 50 PSI (3.5 bar) |
| Element Length | 2 - Double |
| Indicator | M2 - Visual auto reset |
| Media Code | 20Q - Microglass III, 20 micron |
| Element Collapse Rating | “H” Option - 2000 psid (138 bar) |
| Options | 4 - SAE-4 drain port on bowl |
| Seals | B - Nitrile (NBR) |
| Note | For high collapse rated (2000 psid) elements, add “H” behind Q. For Microglass media only.|15P |
| Filter Series | 15P - Pressure filter |
| Ports | S12 - SAE-12 |
| Operating Temperatures | Buna: -40°F (-40°C) to 225°F (107°C) |
| Pressure Ratings Design Safety Factor: | 3:1 |
| Pressure Ratings Rated Fatigue Pressure: | 2000 psi (138 bar) |
| Pressure Ratings Maximum Allowable Operating Pressure (MAOP): | 3000 psi (206.9 bar) |
| Shipping Weights (approximate) | 15P-2 - 4.6 lb. ( 2.1 kg.) |
| Element Condition Indicators | Visual (optional) 360° green/ red. Electrical/ Visual (optional) 5A @ 240VAC, 3A @ 28VDC. Electrical-heavy duty (optional) .25A (resistive) MAX 5 watts 12 to 28 VDC & 110 to 175 VAC. |
