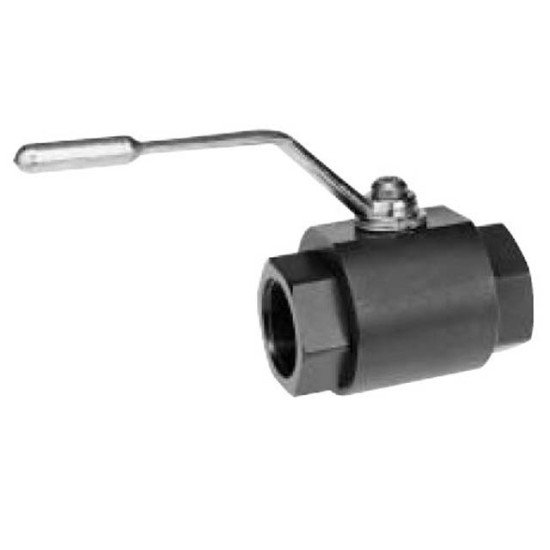

Actual product may vary from image shown.
Series BVHP, BVAH Parker Series BVHP, BVAH
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Series BVHP, BVAH
- MPN: BVHP06NKK1N
Product Views: 1202
$721.58
Series BVHP, BVAH, BVHS are 2-way shut-off valves rated at 207 Bar (3000 PSI) and 414 Bar (6000 PSI). A variety of porting options from 1/4" to 2" are available including threaded, SAE 4-bolt flange and split flange. Features: Thrust bearings and synthetic lubrication in the spindle results in one of the lowest torque requirements in the industry. A wide variety of porting options and mounting options make the BVHP, BVAH, BVHS suitable for all mounting applications. Delrin seals with molybdenum disulphide (MoS2) results in lower actuation torque and will increase high duty life cycle expectancy. The variety of spindle and ball sealing options makes the BVHP, BVAH, BVHS suitable for most media applications. Limit switch (LSB) is NEMA 4 with CSA/UL approval.
| Product Details | |
| Weights - Threaded kg (lbs.)|C. 61 | 06 - 0.7 (1.5) |
| Size | 06 - 3/8" |
| Body Material | K* - Stainless Steel |
| Series | BVHP |
| Ball and Stem Material | K - Stainless Steel |
| Ball Seals | 1 - Delrin |
| Maximum pressure | BVHP04-12, BVHS stainless steel: 414 Bar (6000 PSI) |
| Shaft Seals | N - Nitrile |
| Ports | N - NPT Thread |
| Standard Handle | Steel Offset, Nickel Plated |
| Temperature Range with Standard Seals | -30°C to +100°C (-22°F to +212°F) |
| Thread (inches) | 06 - M16 x 1.5 |
