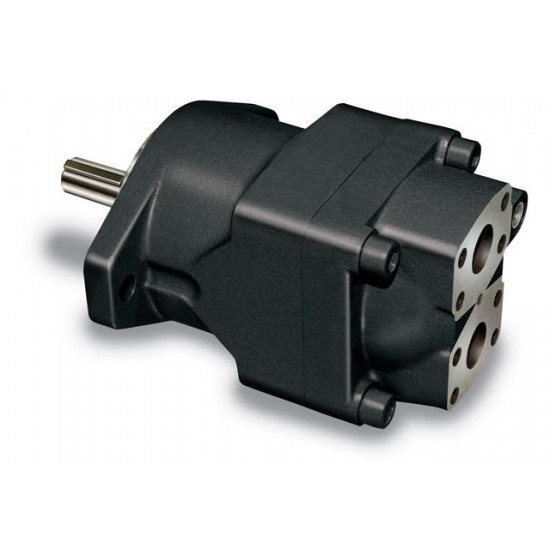

Actual product may vary from image shown.
M3/M4 High Performance Vane Motors
- Stock: In Stock
- Brand: Parker
- Model: M3/M4 High Performance Vane Motors
- MPN: M4C 067 3N00 A101
Product Views: 931
$0.00
The M3 and M4 Series vane motors are fixed displacement and designed especially for severe duty applications. The balance vane cartridge concept provides high volumetric efficiency, longer life, lower noise, and a high starting torque efficiency. The double motor is ideal for applications to obtain three-speed operation. Benefits/Features: Low ripple torque. Low starting torque. Low noise. Bi-rotational technology. Various pilot, threaded port and porting configurations. External/internal drain option. Many displacement combinations for double motor.
| Product Attributes | |
| Seal Class | 1 - S1 Buna N |
| Product Details | |
| Dimensions B | 2.81 (71.4) |
| Dimensions C | 6.93 (176.0) |
| Weight | 34.0 (15.5) |
| Dimensions D | - |
| Shaft Type | 3 - Splined SAE B |
| Note | Single Pumps |
| Series | M4C |
| Torque | 067 - 0.69 |
| Bi-directional Rotation | N |
| Drain | Omit - External |
| Dimensions A inch (mm) | 7.23 (183.6) |
| Service | Omit - Standard |
| Design Level | A |
| Dimensions E inch (mm) | - |
| Dimensions F inch (mm) | 4.75 (120.7) |
| Standard Porting Combination | 00 |
| Port Connection | 01 - SAE Threaded Port SAE Drain |
