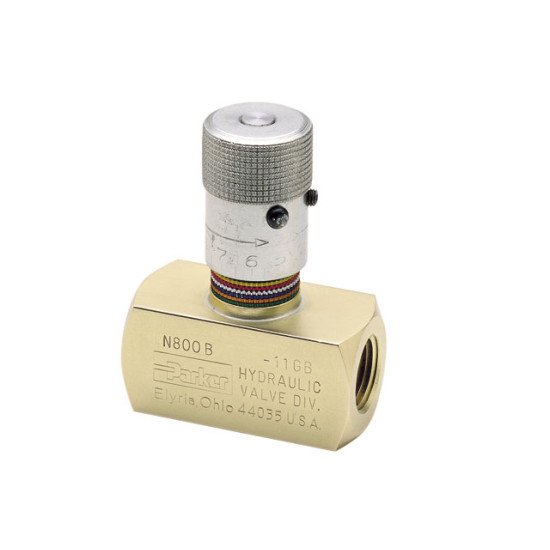

Actual product may vary from image shown.
Colorflow Needle Valve - SAE Parker Colorflow Needle Valve - SAE
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Colorflow Needle Valve - SAE
- MPN: N420S-V
Product Views: 1111
$170.40
| Product Attributes | |
| Max Flow | 3 GPM (11 LPM) |
| Thread 1 | 4 SAE |
| Effective Orifice Area - Control Flow (in2) | 0.0102 |
| Effective Control Flow CV Factor | 0.23 |
| Material Poppet/Stem Seals | Fluorocarbon |
| Valve Type | Needle Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 345 Bar (5000 PSI) |
| Thread 1 Type | SAE |
| Product Details | |
| Material | Steel |
| Size | 420 - #4 SAE |
| A | 7/16–20 UNF #4 SAE |
| Weight kg (lbs.) | 0.1 (0.3) |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel & Stainless Steel: 345 Bar (5000 PSI) for 200 thru 1220; 207 Bar (3000 PSI) for all other sizes |
| Seal Compound | V - Fluorocarbon (Standard on Stainless Steel) |
| Other Options | Omit - Standard Knob |
| Effective Control Flow Cv | 0.230 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Temperature Range of Seal Compound | -26°C to +205°C (-15°F to +400°F) Fluorocarbon |
| Maximum Flow LPM (GPM) | 11 (3) |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.0102 |
| B mm (Inches) | 41.4 (1.63) |
| Series N | N |
| C mm (Inches) | 37.6 (1.48) |
| D mm (Inches) | 50.8 (2.00) |
| E mm (Inches) | 25.4 (1.00) |
| F mm (inches) | 20.6 (0.81) |
| G mm (Inches) | 10.4 (0.41) |
| H mm (Inches) | 19.1 (0.75) |
