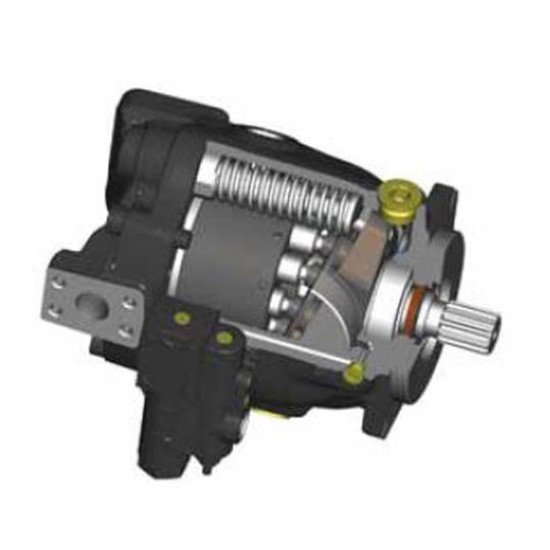

P1/PD Medium Pressure Mobile Piston Pumps

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.

Product Details
G Dimensions	4.88 (123.9)
H Max. Dimensions	4.80 (122)
Port type	0 - Flange Ports
D Dimensions	4.72 (120)
F Dimensions	3.23 (82)
A Dimensions	9.96 (253.0)
Configuration	U - Universal
Design Letter	A
C Max. Dimensions	2.24 (56.8)
E Dimensions	3.98 (101.2)
Port Orientation	E - End Ports
B Dimensions	0.50 (12.7)
Control Options	L0 - Load sensing 145.04-435.11 PSI ΔP (10-30 bar ΔP) with pressure limiter 1160.30 - 4061.05 PSI (80 - 280 bar)
Paint	00 - No Paint
Thru-Drive Mounting Pad/Coupling	0 - No Thru-Drive
Pump Series	P1 - Mobile
Open Circuit	P - Open Circuit (One Side of Center)
Mounting and Ports	S - SAE C Pilot SAE Flange Connection Ports with SAE Aux Ports
Shaft Options	01 - Splined shaft - SAE C 14T
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	0 - No other options
Adjustable Displacement Stops* (For E and S Port Orientation Onl	1 - Adjustable maximum displacement stop
Special Features	00
Displacement 18cc/rev. (1.10 in³/rev)	060
