Actual product may vary from image shown.

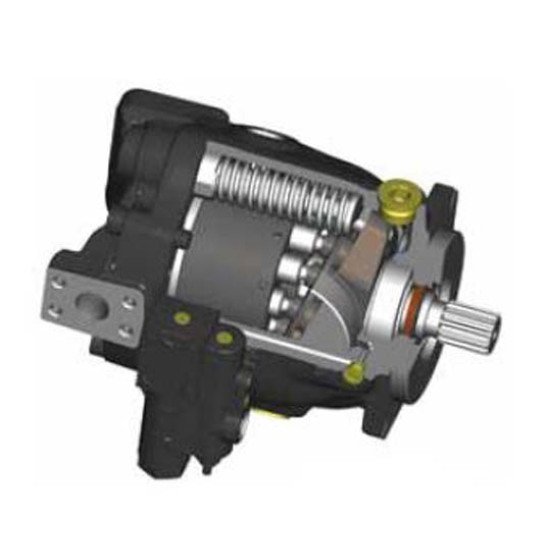

P1/PD Medium Pressure Piston Pumps
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P1/PD Medium Pressure Piston Pumps
- MPN: P1140PS01SLM5AAE0T00D0000
Product Views: 526
$0.00
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.
| Product Details | |
| G Dimensions | 6.13 (155.7) |
| H Max. Dimensions | 4.80 (122) |
| D Dimensions | 4.72 (120) |
| F Dimensions | 4.45 (113) |
| A Dimensions | 14.34 (364.3) |
| Configuration | M - Mobile (P1) |
| Design Letter | A |
| C Max. Dimensions | 2.97 (75.5) |
| E Dimensions | 5.24 (133) |
| Port Orientation | T - Side Ports with Thru-Drive |
| B Dimensions | 0.50 (12.7) |
| Control Options | AE - Pilot operated pressure limiter with mechanical and electrical adjustment 12 VDC |
| Paint | 00 - No Paint |
| Thru-Drive Mounting Pad/Coupling | D - SAE 152-4 (D), 44 (D), 13T coupling |
| Pump Series | P1 - Mobile |
| Open Circuit | P - Open Circuit (One Side of Center) |
| Mounting and Ports | S - SAE D Pilot SAE Flange Connection Ports with SAE Aux Ports |
| Shaft Options | 01 - Splined shaft - SAE D 13T |
| Single Shaft Seal | S |
| Shaft Rotation | L - Counterclockwise |
| Adjustable Displacement Stops* (For E and S Port Orientation Onl | 0 - None |
| Fluorocarbon Seal Material | 5 |
| Additional Control Options | 0 - No other options |
| Flange Ports | 0 |
| Special Features | 00 |
| Displacement 18cc/rev. (1.10 in³/rev) | 140 |
