Actual product may vary from image shown.
Series P2
Door to Door International Shipping
Ships from U.S.A.
- Stock: In Stock
- Brand: Parker
- Model: Series P2
- MPN: P2060L00B2B32LB20N00A1A1P
Product Views: 641
$10,022.29

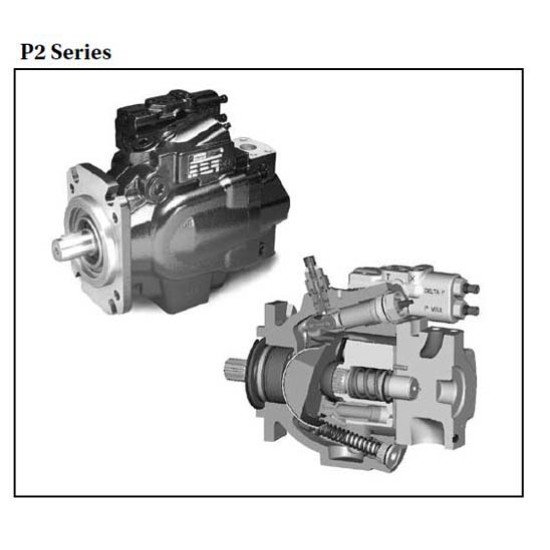

The newly developed variable displacement piston pumps from Parker Hannifin, designated “P2”, are intended for mobile applications, featuring a very compact design, low noise level and low pressure ripple. The pumps are very stable and respond quickly to system demands in many different types of mobile machinery, and are designed for cost effective installation within the limited space available on modern mobile machines. The P2 series is available in four frame sizes from 60 to 145 cm³/rev and features control options that are suitable for most mobile vehicle applications.
| Product Attributes | |
| Shaft | B2 - SAE BB Spline |
| Rotation | L - Left (CCW) |
| Product Details | |
| Mounting Flange | B - SAE B 2-Bolt |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | LB - Load sensing (2 spool)/Pmax with bleed orifice |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 20 - Recommended Initial Factory Setting |
| Thru-drive | A1 - SAE A – 2-Bolt with SAE A Spline |
| Displacement cm3/rev (in3/rev) | 060 - 60 (3.7) |
| Paint Option | P - Parker Black |
| Pressure Compensator Setting | 32 = 320 bar setting |
| Multiple Pump Option | 1 - Single Pump |
| Torque Control Setting (%) Nm|lb-in | 00 - For Non-torque Control Pumps |
| Pump Series | P2 |
