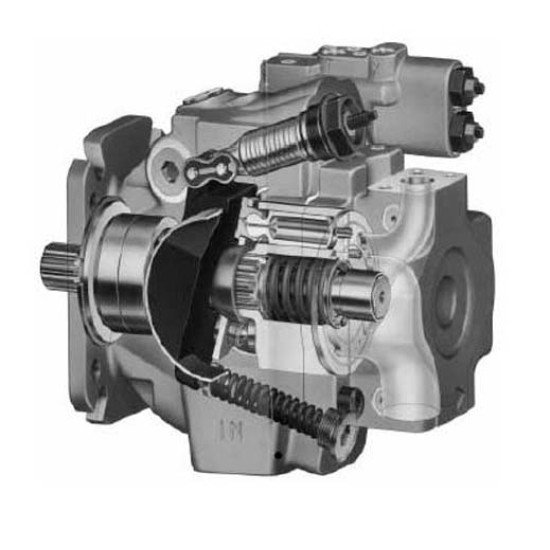

P2 High Pressure/High Speed Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P2 High Pressure/High Speed Mobile Piston Pumps
- MPN: P2060L00C1C32LA20N00S1A1U
Product Views: 769
$8,445.81
| Product Details | |
| Dimensions | 6.74 (171.3) |
| Mounting Flange | C - SAE C 4-Bolt |
| G Dimensions | 4.49 (114) |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | LA - Load sensing (2 spool)/Pmax without bleed orifice |
| B Max. Dimensions | 0.49 (12.5) |
| C Max. Dimensions | 2.19 (55.6) |
| Rotation* | L - Left (CCW) |
| Displacement in3/rev (cm3/rev) | 060 - 3.7 (60) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 20 - Recommended Initial Factory Setting |
| Thru-drive | S1 - No Thru-drive |
| Paint Option | U - No Paint |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P2 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 32 |
| Shaft Options | C1 - SAE C Spline |
| Torque Control Setting (%) | 00 - For Non-torque Control Pumps |
