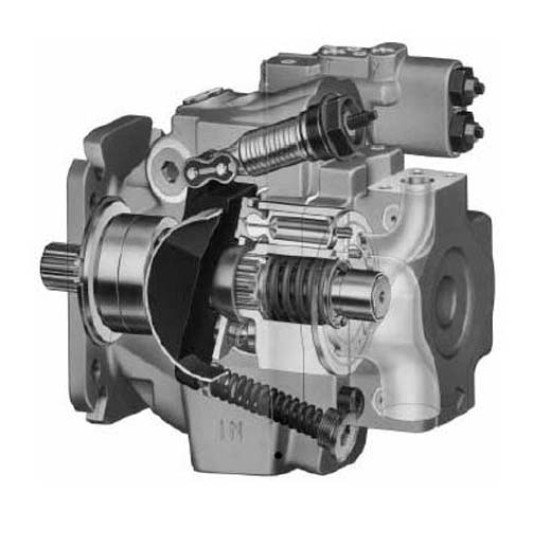

P2 High Pressure/High Speed Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P2 High Pressure/High Speed Mobile Piston Pumps
- MPN: P2060L00C5C27TB20N34S1A1P
Product Views: 787
$10,364.13
| Product Details | |
| Dimensions | 6.74 (171.3) |
| Mounting Flange | C - SAE C 4-Bolt |
| G Dimensions | 4.49 (114) |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | TB(3) - Torque/LS/Pmax with bleed orifice, Torque range 20-60% of max |
| B Max. Dimensions | 0.49 (12.5) |
| C Max. Dimensions | 2.19 (55.6) |
| Rotation* | L - Left (CCW) |
| Displacement in3/rev (cm3/rev) | 060 - 3.7 (60) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 20 - Recommended Initial Factory Setting |
| Thru-drive | S1 - No Thru-drive |
| Paint Option | P - Parker Black |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P2 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 27 |
| Shaft Options | C5 - SAE C Key |
| Torque Control Setting (%) | 34 - 20-90% of Max. Rated Torque(3) |
| Maximum Rated Torque - Nm|lb-in | 339|3004 |
| TA/TB Adj. Range 20%-60% of Max Torque - Nm|lb-in | 68-204|600-1802 |
