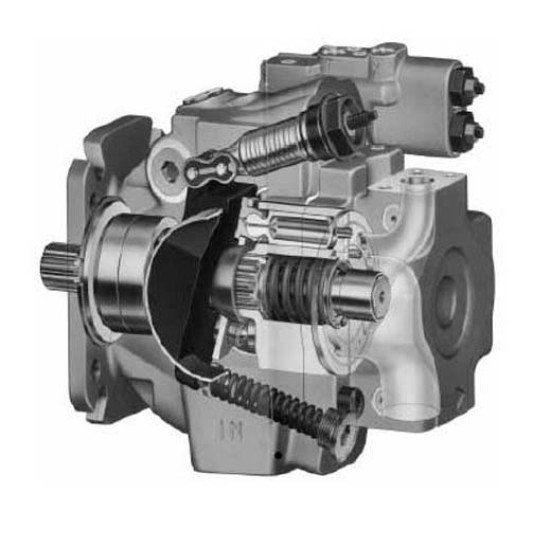

Actual product may vary from image shown.
P2 High Pressure/High Speed Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P2 High Pressure/High Speed Mobile Piston Pumps
- MPN: P2105L00C1C32LA20N00B1A1P
Product Views: 630
$13,917.76
| Product Details | |
| Dimensions | 8.35 (212.0) |
| Mounting Flange | C - SAE C 2/4-Bolt |
| G Dimensions | — |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | LA - Load sensing (2 spool)/Pmax without bleed orifice |
| B Max. Dimensions | 0.49 (12.5) |
| C Max. Dimensions | 2.98 (75.7) |
| Rotation* | L - Left (CCW) |
| Displacement in3/rev (cm3/rev) | 105 - 6.4 (105) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 20 - Recommended Initial Factory Setting |
| Thru-drive | B1 - SAE B – 2-Bolt with SAE B Spline |
| Paint Option | P - Parker Black |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P2 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 32 |
| Shaft Options | C1 - SAE C Spline |
| Torque Control Setting (%) | 00 - For Non-torque Control Pumps |
