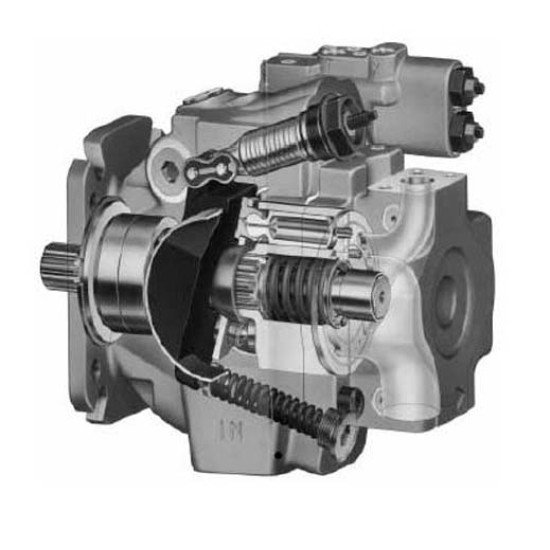

P2 High Pressure/High Speed Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P2 High Pressure/High Speed Mobile Piston Pumps
- MPN: P2105R00C5C32TA20N50T1A1U
Product Views: 634
$14,610.21
| Product Details | |
| Dimensions | 8.35 (212.0) |
| Mounting Flange | C - SAE C 2/4-Bolt |
| G Dimensions | — |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | TA(3) - Torque/LS/Pmax without bleed orifice, Torque range 20-60% of max |
| B Max. Dimensions | 0.49 (12.5) |
| C Max. Dimensions | 2.98 (75.7) |
| Rotation* | R - Right (CW) |
| Displacement in3/rev (cm3/rev) | 105 - 6.4 (105) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 20 - Recommended Initial Factory Setting |
| Thru-drive | T1 - Thru-drive with Cover |
| Paint Option | U - No Paint |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P2 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 32 |
| Shaft Options | C5 - SAE C Key |
| Torque Control Setting (%) | 50 - 20-90% of Max. Rated Torque(3) |
| Maximum Rated Torque - Nm|lb-in | 594|5257 |
| TA/TB Adj. Range 20%-60% of Max Torque - Nm|lb-in | 119-356|1051-3154 |
