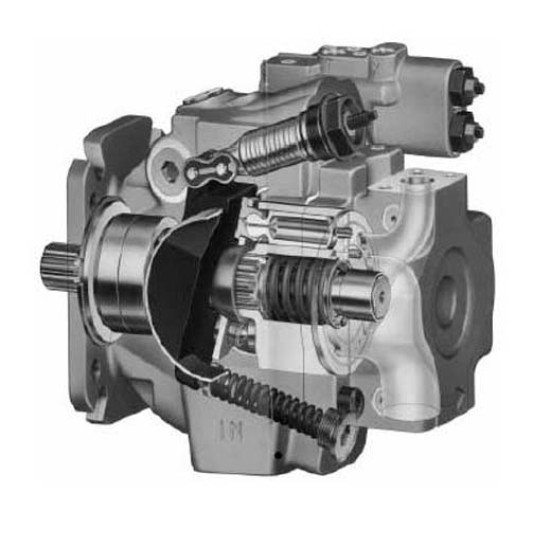

Actual product may vary from image shown.
P2 High Pressure/High Speed Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P2 High Pressure/High Speed Mobile Piston Pumps
- MPN: P2145L79C1C22PA00V00S1A1P
Product Views: 765
$17,771.91
| Product Details | |
| Dimensions | 8.86 (225.0) |
| Mounting Flange | C - SAE C 2-Bolt |
| G Dimensions | 6.46 (164) |
| Port Location | A - Side Flanges, UNC |
| Seal Type | V - Fluorocarbon, single shaft seal |
| Controls | PA - Std. max pressure control (Pmax), 120-320 bar (1740-4600 PSI) |
| B Max. Dimensions | 0.50 (12.7) |
| C Max. Dimensions | 2.98 (75.7) |
| Rotation* | L - Left (CCW) |
| Displacement in3/rev (cm3/rev) | 145 - 8.8 (145) |
| Percent of Max. Displacement | 79 - Range is 70-99 (70% to 99%) |
| Differential Pressure Setting | 00 - Use with PA Control only |
| Thru-drive | S1 - No Thru-drive |
| Paint Option | P - Parker Black |
| Multiple Pumps Option | 1 - Single Pump |
| Pump Series | P2 |
| Pressure Compensator Setting1 Factory set in bar times 10; Range | 22 |
| Shaft Options | C1 - SAE C Spline |
| Torque Control Setting (%) | 00 - For Non-torque Control Pumps |
