Actual product may vary from image shown.

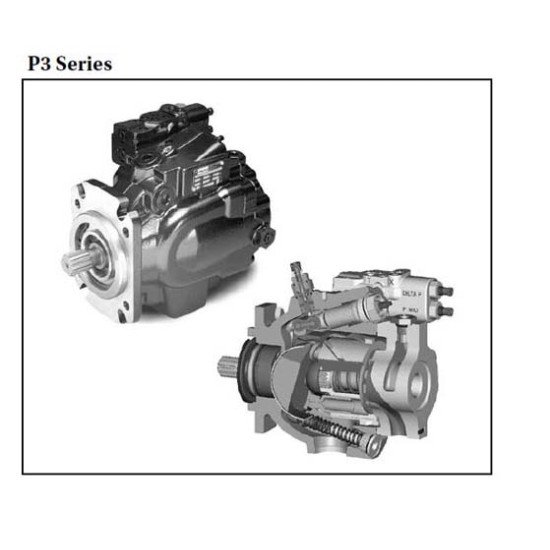

Series P3 Parker Series P3
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Series P3
- MPN: P3075L00C1C20PA00N00S1A1U
Product Views: 759
$11,503.60
The newly developed variable displacement piston pumps from Parker Hannifin, designated “P2”, are intended for mobile applications, featuring a very compact design, low noise level and low pressure ripple. The pumps are very stable and respond quickly to system demands in many different types of mobile machinery, and are designed for cost effective installation within the limited space available on modern mobile machines. The P3 offers a built-in impeller to suit applications requiring higher self-priming speeds or when the vehicle is operating in high altitudes. The P3 pump line is available in three frame sizes from 75 to 145 cm³/rev and features control options that are suitable for most mobile applications.
| Product Attributes | |
| Shaft | C1 - SAE C Spline |
| Rotation | L - Left (CCW) |
| Product Details | |
| Mounting Flange | C - SAE C 2/4-Bolt |
| Port Location | A - Side Flanges, UNC |
| Seal Type | N - Nitrile, single shaft seal |
| Controls | PA - Std. max pressure control (Pmax), 100-320 bar (1450-4600 PSI) |
| Percent of Max. Displacement | 00 - 100% Stroke, standard factory setting |
| Differential Pressure Setting | 00 - Use with PA Control only |
| Thru-drive | S1 - No Thru-drive |
| Displacement cm3/rev (in3/rev) | 075 - 75 (4.6) |
| Paint Option | U - No Paint |
| Pressure Compensator Setting | 20 = 200 bar setting |
| Multiple Pump Option | 1 - Single Pump |
| Pump Series | P3 |
| Torque Control Setting (%) | 00 - For Non-torque Control Pumps |
