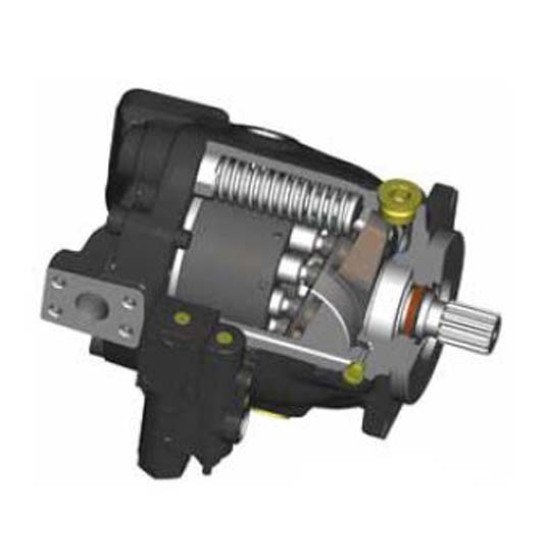

P1/PD Medium Pressure Mobile Piston Pumps

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.

Product Details
G Dimensions	4.75 (120.7)
H Max. Dimensions	4.80 (122)
Port type	0 - Flange Ports
F Dimensions	2.92 (74.2)
A Dimensions	9.00 (228.7)
Configuration	S - Industrial (PD)
Design Letter	A
E Dimensions	3.63 (92.3)
Port Orientation	R - Side ported with ripple chamber
Control Options	AL - Pilot operated pressure limiter with Load sensing (only available with "T" Torque Limiter option, i.e. "ALT ")
Paint	00 - No Paint
Thru-Drive Mounting Pad/Coupling	0 - No Thru-Drive
Pump Series	PD - Industrial
Displacement 45cc/rev. (2.75 in³/rev)	045
Open Circuit	P
Mounting and Ports	S - SAE B Pilot with SAE Threaded or Flange Work Ports with SAE Aux Ports
Shaft Options	02 - Keyed shaft - SAE B-B 1” Dia.
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	T - Torque Limiter Control (Used with AM, AN or AL control options)
Adjustable Displacement Stops* (For E and R Port Orientation Onl	1 - Adjustable maximum displacement stop
Special Features	00
