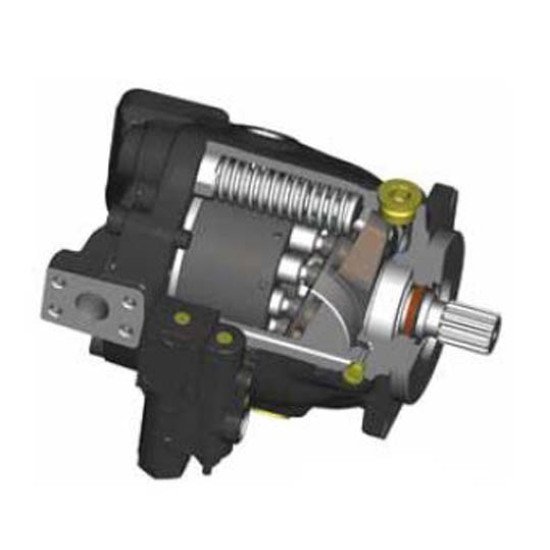

Actual product may vary from image shown.
P1/PD Medium Pressure Mobile Piston Pumps Parker P1/PD Medium Pressure Mobile Piston Pumps
- Stock: In Stock
- Brand: Parker
- Model: P1/PD Medium Pressure Mobile Piston Pumps
- MPN: PD045PS02SRU5AAM0R0000000
Product Views: 954
$0.00
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.
| Product Details | |
| G Dimensions | 4.75 (120.7) |
| H Max. Dimensions | 4.80 (122) |
| Port type | 0 - Flange Ports |
| F Dimensions | 2.92 (74.2) |
| A Dimensions | 9.00 (228.7) |
| Configuration | U - Universal (SAE Mounting Option, S, Only) |
| Design Letter | A |
| E Dimensions | 3.63 (92.3) |
| Port Orientation | R - Side ported with ripple chamber |
| Control Options | AM - Pilot operated pressure limiter with mechanical adjustment and SAE 4 Vent Port |
| Paint | 00 - No Paint |
| Thru-Drive Mounting Pad/Coupling | 0 - No Thru-Drive |
| Pump Series | PD - Industrial |
| Displacement 45cc/rev. (2.75 in³/rev) | 045 |
| Open Circuit | P |
| Mounting and Ports | S - SAE B Pilot with SAE Threaded or Flange Work Ports with SAE Aux Ports |
| Shaft Options | 02 - Keyed shaft - SAE B-B 1” Dia. |
| Single Shaft Seal | S |
| Shaft Rotation | R - Clockwise |
| Fluorocarbon Seal Material | 5 |
| Additional Control Options | 0 - No other options |
| Adjustable Displacement Stops* (For E and R Port Orientation Onl | 0 - None |
| Special Features | 00 |
