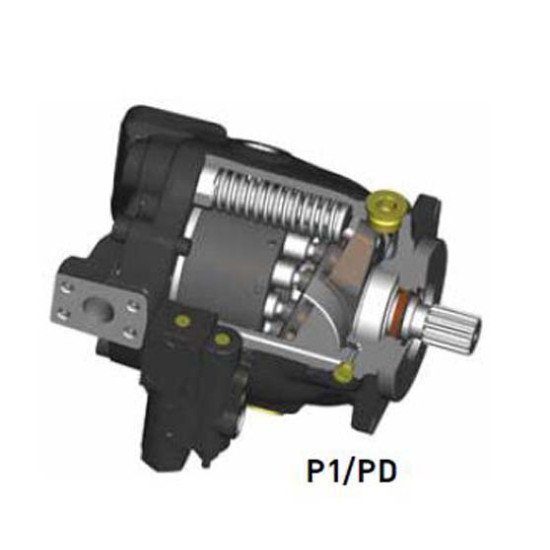

Actual product may vary from image shown.
P1/PD 60cc Series
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P1/PD 60cc Series
- MPN: PD060PD02SRS5BC00E1000000
Product Views: 636
$5,502.24
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life. Easy to service.
| Product Details | |
| Mounting Flange | 127-4 (C) |
| Pilot diameter | 5.0 (127) |
| Port type | 0 - Flange Ports |
| Keyed shaft | 32-1 (C) |
| Configuration | S - Industrial (PD) |
| Design Letter | B |
| Spline shaft | 14T–12/24P (C) |
| Displacement | 060 - 60cc/rev. (3.66 in³/rev) |
| Port Orientation | E - End Ports |
| Dimensions B inch (mm) | 0.50 (12.7) |
| Control Options | C0 - Pressure limiter 1160.30 - 4061.05 PSI (80 - 280 bar) |
| Dimensions A inch (mm) | 9.96 (253.0) |
| Dimensions C Max. inch (mm) | 2.24 (56.8) |
| Dimensions E inch (mm) | 3.98 (101.2) |
| Dimensions F inch (mm) | 3.23 (82) |
| Paint | 00 - No Paint |
| Pump Series | PD - Industrial |
| Open Circuit | P - Open Circuit (One Side of Center) |
| Mounting and Ports | D - SAE C 2-Bolt Pilot SAE Flange Connection Ports with BSPP Aux Ports |
| Shaft Options | 02 - Keyed shaft - SAE C 32-1 KEY |
| Single Shaft Seal | S |
| Shaft Rotation | R - Clockwise |
| Fluorocarbon Seal Material | 5 |
| Additional Control Options | 0 - No other options |
| Special Features | 00 |
| Adjustable Displacement Stops | 1 - Adjustable maximum displacement stop |
| Thru-Drive Mounting Pad and Coupling | 0 - No Thru-Drive |
| Dimensions D inch (mm) | 4.72 (120) |
| Dimensions G inch (mm) | 4.88 (123.9) |
| Dimensions H Max. inch (mm) | 4.80 (122) |
