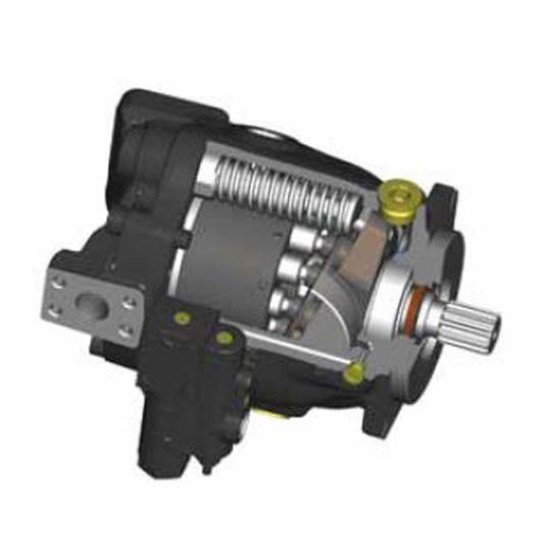

P1/PD Medium Pressure Mobile Piston Pumps
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: P1/PD Medium Pressure Mobile Piston Pumps
- MPN: PD060PS02SRU5AC00S0000000
Product Views: 799
$5,097.30
Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.
| Product Details | |
| G Dimensions | 4.88 (123.9) |
| H Max. Dimensions | 4.80 (122) |
| Port type | 0 - Flange Ports |
| F Dimensions | 3.23 (82) |
| A Dimensions | 9.96 (253.0) |
| Configuration | U - Universal |
| Design Letter | A |
| E Dimensions | 3.98 (101.2) |
| Port Orientation | S - Side Ports |
| Control Options | C0 - Pressure limiter 1160.30 - 4061.05 PSI (80 - 280 bar) |
| Paint | 00 - No Paint |
| Thru-Drive Mounting Pad/Coupling | 0 - No Thru-Drive |
| Pump Series | PD - Industrial |
| Open Circuit | P - Open Circuit (One Side of Center) |
| Mounting and Ports | S - SAE C Pilot SAE Flange Connection Ports with SAE Aux Ports |
| Shaft Options | 02 - Keyed shaft - SAE C 32-1 KEY |
| Adjustable Displacement Stops* (For E and S Port Orientation Onl | 0 - None |
| Single Shaft Seal | S |
| Shaft Rotation | R - Clockwise |
| Fluorocarbon Seal Material | 5 |
| Additional Control Options | 0 - No other options |
| Displacement 60cc/rev. (3.66 in³/rev) | 060 |
| Special Features | 00 |
