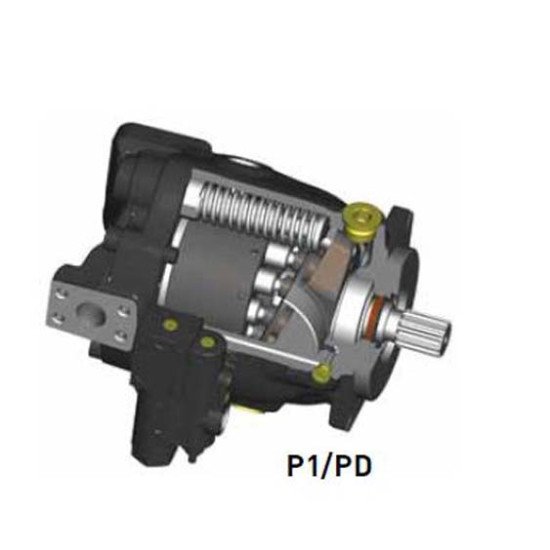

P1/PD 100cc Series

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life. Easy to service.

Product Details
Mounting Flange	127-4 (C)
Pilot diameter	5.0 (127)
Keyed shaft	38-1 (C-C)
Configuration	S - Industrial (PD)
Design Letter	B
Spline shaft	17T-12/24P (C-C)
Displacement	100 - 100cc/rev. (6.1 in³/rev)
Port Orientation	E - End Ports
Dimensions B inch (mm)	0.50 (12.7)
Control Options	L0 - Load sensing 145.04-435.11 PSI ∆P (10-30 bar ∆P) with pressure limiter 1160.30 - 4061.05 PSI (80 - 280 bar)
Dimensions A inch (mm)	13.37 (339.6)
Dimensions C Max. inch (mm)	2.47 (62.8)
Dimensions E inch (mm)	4.61 (117.1)
Dimensions F inch (mm)	3.98 (101)
Paint	00 - No Paint
Pump Series	PD - Industrial
Open Circuit	P - Open Circuit (One Side of Center)
Mounting and Ports	S - SAE C Pilot SAE Flange Connection Ports with SAE Aux Ports
Shaft Options	02 - Keyed shaft - SAE C-C 38-1
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	0 - No other options
Flange Ports	0
Special Features	00
Adjustable Displacement Stops	1 - Adjustable maximum displacement stop
Thru-Drive Mounting Pad and Coupling	0 - No Thru-Drive
Dimensions D inch (mm)	4.72 (120)
Dimensions G inch (mm)	5.66 (143.7)
Dimensions H Max. inch (mm)	4.80 (122)
