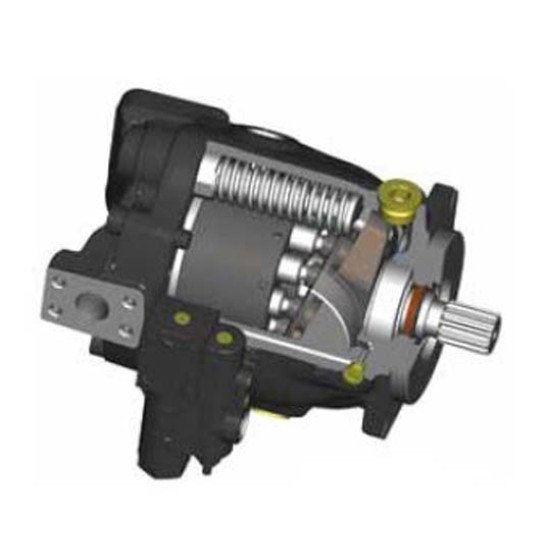

P1/PD Medium Pressure Mobile Piston Pumps

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.

Product Details
G Dimensions	6.13 (155.7)
H Max. Dimensions	4.80 (122)
F Dimensions	4.45 (113)
A Dimensions	14.34 (364.3)
Configuration	S - Industrial (PD)
Design Letter	A
E Dimensions	5.24 (133)
Port Orientation	S - Side Ports
Control Options	AN* - Pilot operated pressure limiter with ISO4401 interface & SAE 4 Vent Port
Paint	00 - No Paint
Thru-Drive Mounting Pad/Coupling	0 - No Thru-Drive
Pump Series	PD - Industrial
Open Circuit	P - Open Circuit (One Side of Center)
Mounting and Ports	A - SAE D Pilot BSPP Flange Connection Ports with BSPP Aux Ports
Adjustable Displacement Stops* (For E and S Port Orientation Onl	1 - Adjustable maximum displacement stop
Shaft Options	02 - Keyed shaft - SAE D 44-1
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	0 - No other options
Displacement 140cc/rev. (8.54 in³/rev)	140
Flange Ports	0
Special Features	00
