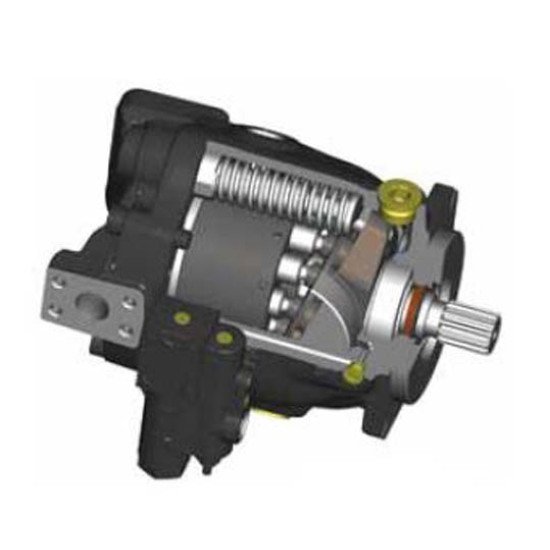

P1/PD Medium Pressure Mobile Piston Pumps

Benefits/Features: Compact overall package size. Quiet operation. Low flow ripple to further reduce noise. Elastomer seals that eliminate gaskets and external leakage. High operating efficiency for lower power consumption and reduced heat generation. Simple hydraulic controls with “no-leak” adjustments. SAE and ISO standard mounting flanges and ports. Long life, tapered-roller shaft bearings. Long life, low friction, hydrostatically balanced cam bearings. Full power through-drive capability. End or side inlet and outlet ports. Case drain ports for horizontal or vertical, shaft-up mounting. Optional minimum and maximum displacement adjustments. Optional case-to-inlet check valve to extend shaft seal life Easy to service.

Product Details
G Dimensions	6.13 (155.7)
H Max. Dimensions	4.80 (122)
F Dimensions	4.45 (113)
A Dimensions	14.34 (364.3)
Configuration	S - Industrial (PD)
Design Letter	A
E Dimensions	5.24 (133)
Port Orientation	T - Side Ports with Thru-Drive
Control Options	AE - Pilot operated pressure limiter with mechanical and electrical adjustment 12 VDC
Paint	00 - No Paint
Thru-Drive Mounting Pad/Coupling	B - SAE 101-2 (B), 22 (B), 11T coupling
Pump Series	PD - Industrial
Open Circuit	P - Open Circuit (One Side of Center)
Mounting and Ports	S - SAE D Pilot SAE Flange Connection Ports with SAE Aux Ports
Adjustable Displacement Stops* (For E and S Port Orientation Onl	0 - None
Shaft Options	01 - Splined shaft - SAE D 13T
Single Shaft Seal	S
Shaft Rotation	R - Clockwise
Fluorocarbon Seal Material	5
Additional Control Options	0 - No other options
Displacement 140cc/rev. (8.54 in³/rev)	140
Flange Ports	0
Special Features	00
