Actual product may vary from image shown.

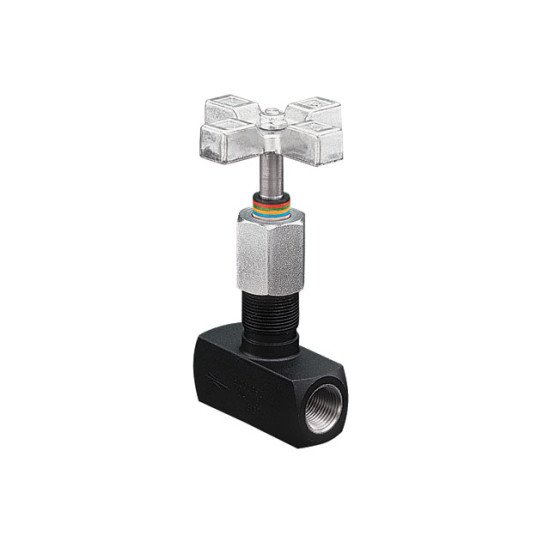

Colorflow Metering Valve - NPT Parker Colorflow Metering Valve - NPT
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Colorflow Metering Valve - NPT
- MPN: MV261S2-V
Product Views: 1432
$322.18
| Product Attributes | |
| Max Flow | 1.8 GPM (7 LPM) |
| Thread 1 | 1/8 NPT |
| Effective Orifice Area - Control Flow (in2) | 0.0053 |
| Effective Control Flow CV Factor | 0.121 |
| Material Poppet/Stem Seals | Fluorocarbon |
| Valve Type | Metering Valve |
| Trade Name | Colorflow |
| Configuration Type | Right Angle - Female to Female |
| Max Pressure | 413 Bar (6000 PSI) |
| Thread 1 Type | NPT |
| Product Details | |
| Material | Steel |
| Size | 261 - 1/8" |
| Weight kg (lbs.) | 0.1 (0.3) |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel: 413 Bar (6000 PSI) for MV261, 461, 661, 861. |
| Seal Compound | V - Fluorocarbon |
| Effective Control Flow Cv | 0.244 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Series MV | MV |
| Temperature Range of Seal Compound | -26°C to +205°C (-15°F to +400°F) Fluorocarbon |
| Needle Options | 2 - Fine |
| Control Flow in.2 | 0.0107 |
| A1 | 1/8–27 NPTF Female |
| A2 | 1/8–27 NPTF Female |
| B mm (Inches) | 93.98 (3.70) |
| C mm (Inches) | 60.7 (2.39) |
| D mm (Inches) | 26.9 (1.06) |
| Effective Orifice Area Max Flow LPM (GPM) | 11 (3) |
| Needle Option | Fine |
| E mm (Inches) | 26.9 (1.06) |
| F mm (inches) | 17.5 (0.69) |
| G mm (Inches) | 44.5 (1.75) |
