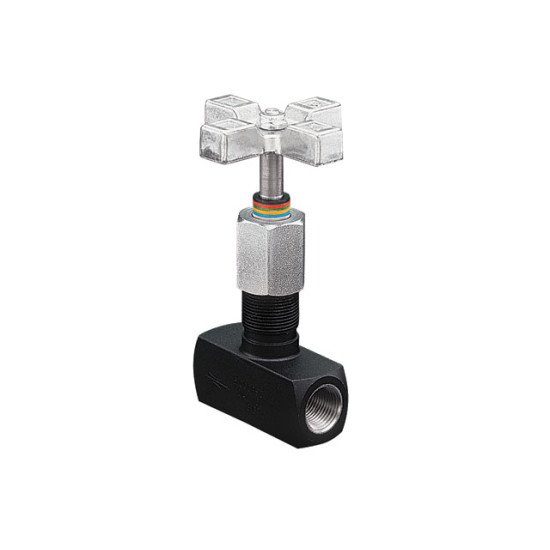

Actual product may vary from image shown.
Colorflow Metering Valve - SAE Parker Colorflow Metering Valve - SAE
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Colorflow Metering Valve - SAE
- MPN: MV620S3
Product Views: 1211
$268.93
| Product Attributes | |
| Max Flow | 0.5 GPM (2 LPM) |
| Thread 1 | 6 SAE |
| Effective Orifice Area - Control Flow (in2) | 0.0017 |
| Effective Control Flow CV Factor | 0.039 |
| Material Poppet/Stem Seals | Nitrile |
| Valve Type | Metering Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 345 Bar (5000 PSI) |
| Thread 1 Type | SAE |
| Product Details | |
| Material | Steel |
| Size | 620 - #6 SAE |
| Weight kg (lbs.) | 0.5 (1.1) |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel: 413 Bar (6000 PSI) for MV261, 461, 661, 861. |
| Seal Compound | Omit - Nitrile (Standard) |
| Effective Control Flow Cv | 0.493 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Series MV | MV |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Needle Options | 3 - Micro-fine |
| Control Flow in.2 | 0.0216 |
| A1 | 9/16–18 UNF #6 SAE |
| A2 | 9/16–18 UNF #6 SAE |
| B mm (Inches) | 89.2 (3.51) |
| C mm (Inches) | 83.8 (3.30) |
| D mm (Inches) | 60.5 (2.38) |
| Effective Orifice Area Max Flow LPM (GPM) | 19 (5) |
| Needle Option | Micro-fine |
| E mm (Inches) | 30.2 (1.19) |
| F mm (inches) | 25.4 (1.00) |
| G mm (Inches) | 50.8 (2.00) |
