Actual product may vary from image shown.

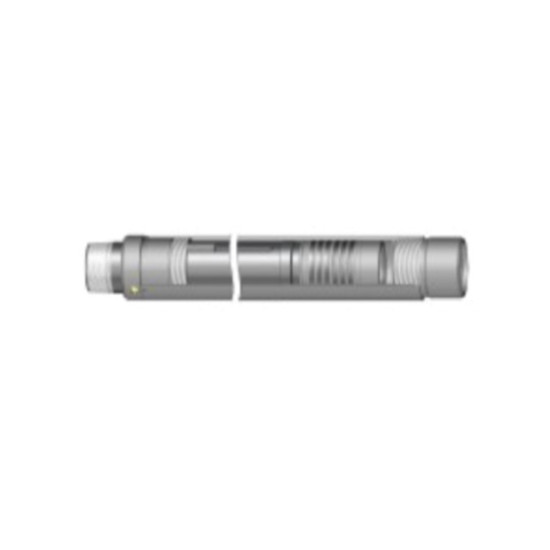

2-3/8" Thermal and Splined Expansion Joints Thermal and Splined
- Stock: NO Availability
- Model: Thermal and Splined
Product Views: 2763
$0.00
Tubing Size: 2-3/8
Tubing Weight: 3.26
Maximum OD (in.): 3.260
Minimum ID (in.): 1.990
Stroke (ft.): 10
Working Pressure (psi.): 5.000
Torsional rating (lbs/ft): 7.500 For standard services ; 5.500 For sour services (Specify)
Temperature (F): 300 and up ; (Specify)
Splinted mandrel (in.): W/ pin thread size 2-3/8 EU ; NU ; Premium (Specify)
Body (in.): W/ box thread size 2-3/8 EU ; NU ; Premium (Specify)
Body head type: Stopper mandrel with latch-on stopper spacer
