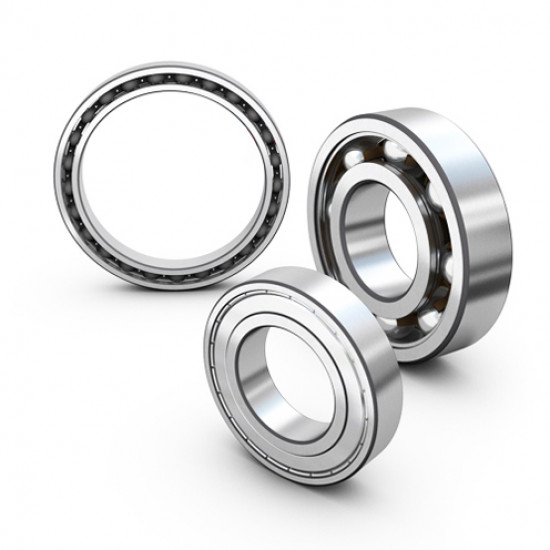

Actual product may vary from image shown.
6226 6226
- Stock: Ask for Lead Time
- Model: 6226
- Weight: 13.00lb
Product Views: 86
$0.00
| Cage Material | Steel |
|---|---|
| Static Load Capacity | 132 kN |
| Closure Type | Open |
| Outside Diameter | 230 mm |
| Fillet Radius | 2.5 mm |
| Internal Clearance | C0 |
| Weight | 12.98 lbs |
| Finish Coating | Uncoated |
| Bore Type | Round |
| Overall Width | 40 mm |
| Series | 62 |
| Outer Ring Width | 40 mm |
| Bore Diameter | 130 mm |
| Snap Ring Included | Without Snap Ring |
| Dynamic Load Capacity | 156 kN |
| Maximum RPM | 3600 RPM |
| Precision Rating | ABEC 1 (ISO Class Normal) |
| Row Type Fill Slot | Single Row Non-Fill Slot |
