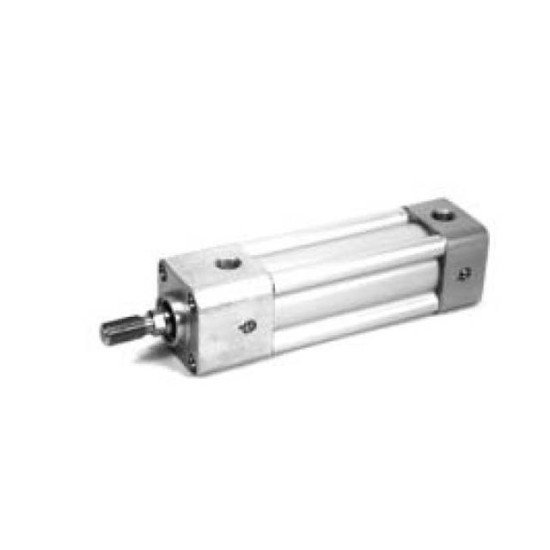

Actual product may vary from image shown.
Common MS4 (Basic) Cylinder
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Aventics
- Model: Common MS4 (Basic) Cylinder
- MPN: R432021312
Product Views: 983
$450.57
| Product Details | |
| Description | 4 X 3 (non-cush) |
| Pressure Rating | 200 psi air |
| Note | (NFPA Compliant TM-1) Rod thread KK1 = 3/4-16 Port size EE = 1/2" NPTF|4" Bore |
| Other Part Number | TM-150000-00030 |
| Temperature Range | 0° F to 160° F ambient |
| Tube | Hard anodized alloy aluminum for light weight, high strength, & maximum corrosion resistance |
| Piston Rod | Case hardened to 50-55 Rockwell "C" chrome-plated and finished to 15 micro-inches or better (5/8" not case hardened) |
| Pre-Lubricated Design | Teflon-coated piston and polyurethane rod seals plus factory pre-lubrication eliminates the need for air line lubrication. Ports at quadrant 1, cushions at quadrant 2 (both can be ordered in different locations). |
| Rod End Threads | KK1 male, KK2 male, KK1 female or KK1 studded male threads |
| Ports | NPTF dryseal tapered threads, oversize ports available |
