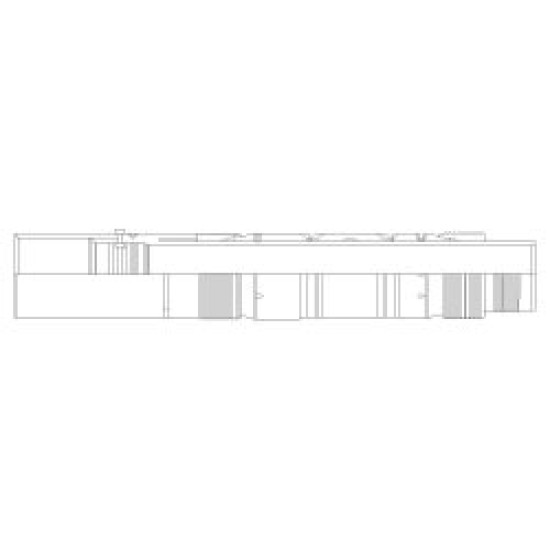

-01-550x550.jpg "Showing image for SealBore Wireline- Hydraulic Packer")
Actual product may vary from image shown.
SealBore Wireline- Hydraulic Packer Wireline- Hydraulic Packer
- Stock: Ask for Lead Time
- Model: Wireline- Hydraulic Packer
Product Views: 4351
$0.00
Option
| Casing Size (in.) | Casing Weight (lbm/ft.) | Max. OD (in.) | Nominal ID (in.) | Setting | Type | Max. Working Temperature °F | Slips | Pressure diferencial (psi.) |
| 5-1/2 | 14-17 | 4.563 | 3.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 5-1/2 | 20-23 | 4.435 | 3.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 7 | 20-26 | 6.015 | 4.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 7 | 26-29 | 5.890 | 4.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 7 | 32-35 | 5.815 | 4.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 7 | 32-38 | 5.687 | 4.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 7-5/8 | 33.7-39 | 6.265 | 4.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 9-5/8 | 36-47 | 8.463 | 6.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
| 9-5/8 | 47-58.4 | 8.219 | 6.003 | Wireline or Hydraulic | Permanent | 325 | One piece | 10,000 |
