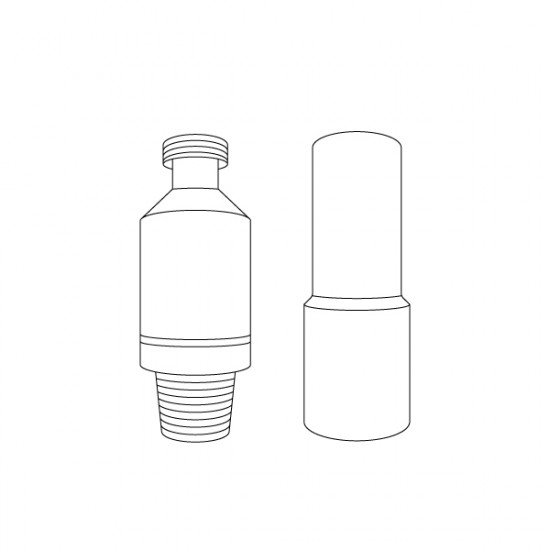

Actual product may vary from image shown.
Circulating Sub Circulating Sub
- Stock: Ask for Lead Time
- Model: Circulating Sub
Product Views: 7989
$0.00
Option
| Item # | Body OD (in) | Fig Type | Union Type | Connection (in) | Length (in) | WP | |
|---|---|---|---|---|---|---|---|
| 1 | 4-3/4" | W/2 Figure 1502 | Female Up | 3-1/2 IF Pin Down | 15" | 10000 | |
| 2 | 4-3/4" | W/2 Figure 1502 | Female Up | 3-1/2 IF Pin Down | 12" | 10000 | |
| 3 | 4-7/8" | W/2 Figure 1502 | Female Up | XT39 Pin Down | 15" | 10000 | |
| 4 | 4-7/8" | W/2 Figure 1502 | Female Up | XT39 Pin Down | 12" | 10000 | |
| 5 | 5" | W/2 Figure 1502 | Female Up | 3-1/2 IF Pin Down | 15" | 10000 | |
| 6 | 5" | W/2 Figure 1502 | Female Up | 3-1/2 IF Pin Down | 12" | 10000 | |
| 7 | 5-1/2" | W/2 Figure 1502 | Female Up | 4 FH Pin Down | 15" | 10000 | |
| 8 | 5-1/2" | W/2 Figure 1502 | Female Up | 4 FH Pin Down | 12" | 10000 | |
| 9 | 6-1/2" | W/2 Figure 1502 | Female Up | 4-1/2 XH (NC 46) Pin Down | 15" | 10000 | |
| 10 | 6-1/2" | W/2 Figure 1502 | Female Up | 4-1/2 XH (NC 46) Pin Down | 12" | 10000 | |
| 11 | 6-3/4" | W/2 Figure 1502 | Female Up | XT54 Pin Down | 17" | 10000 | |
| 12 | 6-3/4" | W/2 Figure 1502 | Female Up | XT54 Box Down | 14" | 10000 | |
| 13 | 6-5/8" | W/2 Figure 1502 | Female Up | 4-1/2 IF (NC50) | 15" | 10000 | |
| 14 | 6-5/8" | W/2 Figure 1502 | Female Up | 4-1/2 IF (NC50) | 12" | 10000 | |
| 15 | 7" | W/2 Figure 1502 | Female Up | 5-1/2 FH PIN DOWN | 16" | 10000 | |
| 16 | 7" | W/2 Figure 1502 | Female Up | XT57 Pin Down | 17" | 10000 | |
| 17 | 7" | W/2 Figure 1502 | Female Up | XT57 Box Down | 14" | 10000 | |
| 18 | 7-1/4" | W/2 Figure 1502 | Female Up | 5-1/2 HT55 Pin Down | 17" | 10000 | |
| 19 | 7-1/4" | W/2 Figure 1502 | Female Up | 5-1/2 HT55 Box Down | 14" | 10000 | |
| 20 | Other (As Specify By Customer) | ||||||
