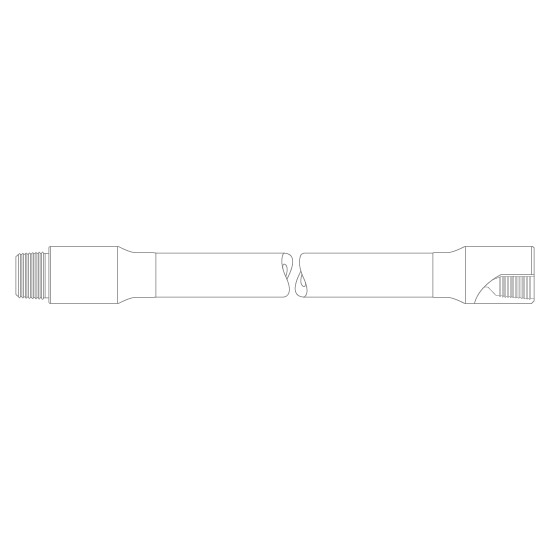

Actual product may vary from image shown.
Pup Joint Pup Joint
- Stock: Ask for Lead Time
- Model: Pup Joint
Product Views: 19145
$0.00
Option
| Item # | Nominal Size | Bore (in) | Tool Joint OD (in) | Connection | Elevator Upset (in) | Box (Tong Space Length) | Pin (Tong Space Length) | Length (ft) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 3-1/2 | 2-1/4 | 4-3/4 | NC 38 (3-1/2 IF) | 3-7/8 | 10-1/2 | 8 | 5 | 145 | |
| 2 | 3-1/2 | 2-1/4 | 4-3/4 | NC 38 (3-1/2 IF) | 3-7/8 | 10-1/2 | 8 | 10 | 230 | |
| 3 | 3-1/2 | 2-1/4 | 5 | NC 38 (3-1/2 IF) | 3-7/8 | 10-1/2 | 8 | 15 | 310 | |
| 4 | 3-1/2 | 2-1/4 | 5 | NC 38 (3-1/2 IF) | 3-7/8 | 10-1/2 | 8 | 20 | 395 | |
| 5 | 4 | 2- 13/16 | 5-1/4 | NC40 (4 FH) | 4-3/16 | 10 | 7 | 5 | 180 | |
| 6 | 4 | 2- 13/16 | 5-1/4 | NC40 (4 FH) | 4-3/16 | 10 | 7 | 10 | 290 | |
| 7 | 4 | 2- 13/16 | 5-1/2 | NC40 (4 FH) | 4-3/16 | 10 | 7 | 15 | 395 | |
| 8 | 4 | 2- 13/16 | 5-1/2 | NC40 (4 FH) | 4-3/16 | 10 | 7 | 20 | 505 | |
| 9 | 4 | 3-1/4 | 5-3/4 | NC46 (4IF) | 4-1/2 | 10 | 7 | 5 | 170 | |
| 10 | 4 | 3-1/4 | 5-3/4 | NC46 (4IF) | 4-1/2 | 10 | 7 | 10 | 245 | |
| 11 | 4 | 3-1/4 | 6 | NC46 (4IF) | 4-1/2 | 10 | 7 | 15 | 315 | |
| 12 | 4 | 3-1/4 | 6 | NC46 (4IF) | 4-1/2 | 10 | 7 | 20 | 390 | |
| 13 | 4-1/2 | 3-1/4 | 6 | NC46 (4IF) | 4-11/16 | 10 | 7 | 5 | 220 | |
| 14 | 4-1/2 | 3-1/4 | 6 | NC46 (4IF) | 4-11/16 | 10 | 7 | 10 | 350 | |
| 15 | 4-1/2 | 3-1/4 | 6-1/4 | NC46 (4IF) | 4-11/16 | 10 | 7 | 15 | 480 | |
| 16 | 4-1/2 | 3-1/4 | 6-1/4 | NC46 (4IF) | 4-11/16 | 10 | 7 | 20 | 610 | |
| 17 | 4-1/2 | 3-1/2 | 6-1/4 | NC50 (4-1/2 IF) | 5 | 10 | 7 | 5 | 205 | |
| 18 | 4-1/2 | 3-1/2 | 6-1/4 | NC50 (4-1/2 IF) | 5 | 10 | 7 | 10 | 315 | |
| 19 | 4-1/2 | 3-1/2 | 6-3/8 | NC50 (4-1/2 IF) | 5 | 10 | 7 | 15 | 420 | |
| 20 | 4-1/2 | 3-1/2 | 6-3/8 | NC50 (4-1/2 IF) | 5 | 10 | 7 | 20 | 525 | |
| 21 | 5 | 3-1/2 | 6-3/8 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 5 | 255 | |
| 22 | 5 | 3-1/2 | 6-3/8 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 10 | 425 | |
| 23 | 5 | 3-1/2 | 6-1/2 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 15 | 595 | |
| 24 | 5 | 3-1/2 | 6-1/2 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 20 | 765 | |
| 25 | 5 | 3-3/4 | 6-3/8 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 5 | 230 | |
| 26 | 5 | 3-3/4 | 6-3/8 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 10 | 375 | |
| 27 | 5 | 3-3/4 | 6-1/2 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 15 | 520 | |
| 28 | 5 | 3-3/4 | 6-1/2 | NC50 (4-1/2 IF) | 5-1/8 | 10 | 7 | 20 | 665 | |
| 29 | Other (As Specify By Customer) | |||||||||
