Actual product may vary from image shown.

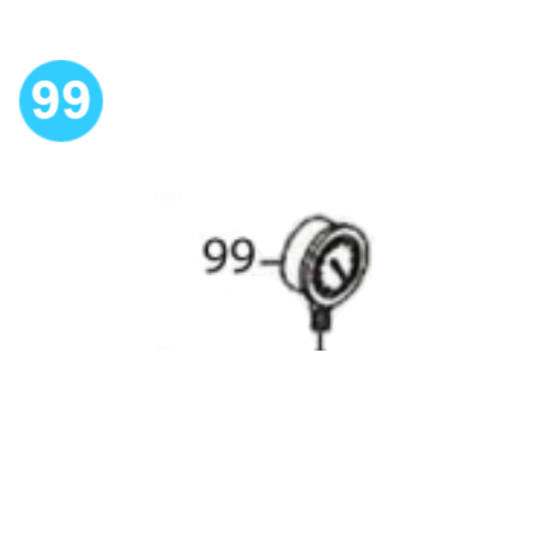

item#99 BJ Style Rod Tong Mark IV Torque Indicator Gauge
- Stock: Ask for Lead Time
- Brand: BJ Style
- Model: Rod Tong Mark IV
- MPN: 29143
Product Views: 1094
$0.00
| pressure | Ripa | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | t3 | |
| torque | Psi | 725 | 870 | 1015 | 1160 | 1305 | 1450 | 1595 | 1740 | 1885 | |
| m IW. | 0. 82 | 0. 92 | 1. 01 | 1. 11 | 1.21 | 1. 30 | 1. 40 | 1. 50 | 1. 60 | ||
| M20 | It. Ibs | 605 | 6'/9 | 745 | 819 | 893 | 959 | 1033 | 1107 | 1181 | |
| M40 | hX. | 0. 89 | t. 02 | 1. 16 | L J0 | t. 44 | 1. 58 | 1. y2 | 1. 86 | 2. 00 | |
| ft. 1bs | 657 | 752 | 856 | 959 | 1063 | 1166 | 1269 | 1373 | 14*6 | ||
| (¥50 | U. o | 1. 30 | 1. 45 | 1. ti0 | 1. ?ñ | 1.9 | 2.05 | 2. 20 | 2. 35 | 2. 30 | |
| (¥50 | ft. lbs | 960 | !070 | 1181 | 1291 | 1402 | 1513 | 1624 | 1734 | 1845 | |
- When adjusting the make-up torque, please select proper torque(system pressure) recommended by API for making up a rod, according to the relation of system pressure to torque in the above table
- Because of the inherent characteristics of the hydraulic motor, its rotating torque is 15-20% higher than the stalled torque. It is suggested that the relief value be reduced this amount before rotating a rod In at full speed.
- When making up a rod, if it is maladjusted, damage may be caused to the rod, and please be cautious for use
