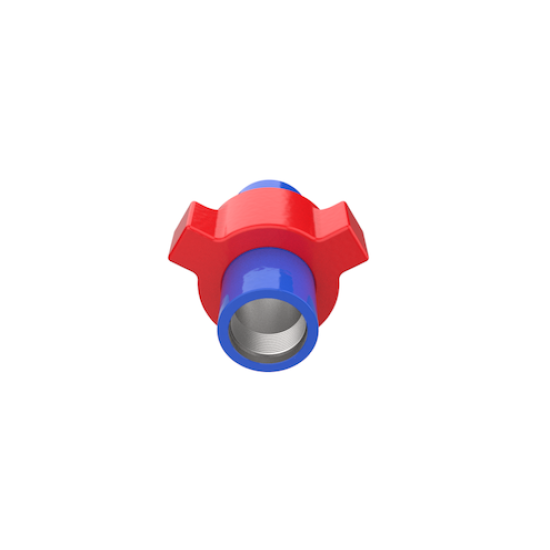

Figure 1002 - 10000psi Hammer Union 5" Threaded Connection FIG 1002

Size: 5"

Part Number: 120500

Approx. Weight (lbs): 71,75

Figure 1002 Hammer Unions are used for oilfield applications involving high pressure such as acidizing, choke & kill lines and cementing.

Their max working pressure is 10,000 psi and their price is considered to be high compared to the lower or medium pressure hammer unions.

• Color Code: red nut, blue sub
• Connections: threaded
• Material: Forged carbon steel
