Actual product may vary from image shown.
Parker Series BVAL
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Parker Series BVAL
- MPN: BVAL16NSS2NC
Product Views: 1068
$677.65

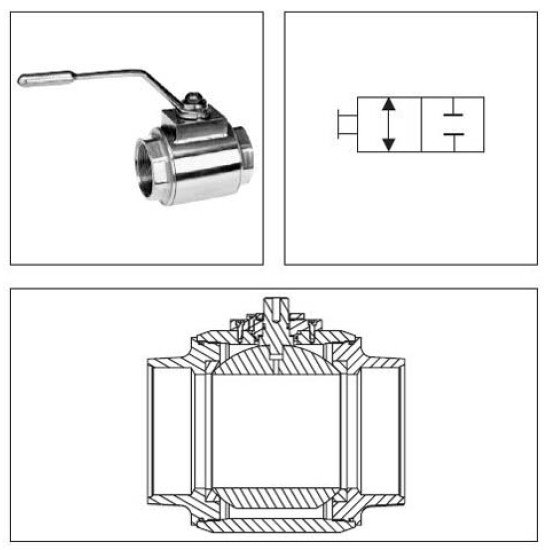

Series BVAL ball valves are designed to meet the needs of suction line and low pressure applications. This series is available from 1/4" to 4" ports NPT, SAE and BSPP, and is designed to assure leak free hydraulic suction and return line durability. Features: Unrestricted bore from 1/4" to 4". Unrestricted flow and cavitation eliminated. Availability of NPT, BSPP and SAE O-ring sealed ports assure leak-free service. Choice of optional seal materials allows use with phosphate esters, water glycols and other media. Utilizes top grade PTFE ball seats with O-ring seals throughout to assure smooth and leak-free operation.
| Product Details | |
| Port | N - NPT Thread |
| Size | 16 - 1' |
| Body Material | S - Aluminum |
| Options | C - 1-Way Limit Switch |
| Series | BVAL |
| Ball and Stem Material | S - Brass |
| Ball Seals | 2 - PTFE |
| Maximum pressure | 28 Bar (400 PSI) |
| Shaft Seals | N - Nitrile |
| Standard Handle | Aluminum Offset |
| Temperature Range with Standard Seals | -30°C to +100°C (-22°F to +212°F) |
| Weights kg (lbs.) | 16 - 0.5 (1.0) |
| Standard Ball Seals | PTFE standard |
| Standard Shaft Seals | O-Ring & Backup, Nitrile |
