Actual product may vary from image shown.
Parker Series BVMM Parker Parker Series BVMM
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Parker Series BVMM
- MPN: BVMM061SS1NA
Product Views: 1106
$1,200.86

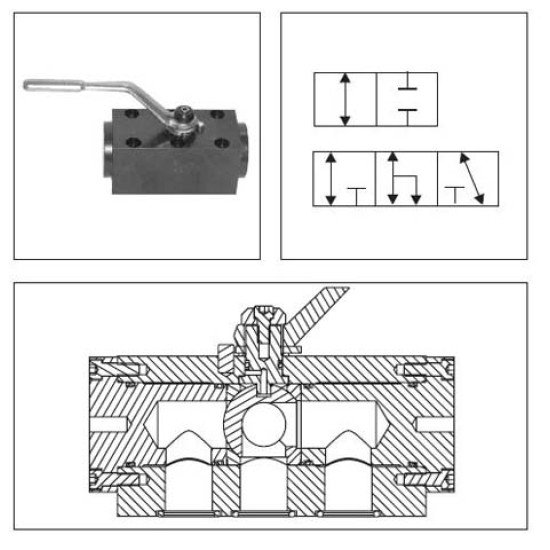

Series BVMM is a manifold mounted high pressure 414 Bar (6000 PSI) 2 or 3-way ball valve. Manifold mounting eliminates an external fluid connection. Features: Variety of ball patterns allow for different flow paths and flexibility for many applications. Thrust bearings in the spindle and delrin moly ball seals result in low actuation torque as well as extended service life.
| Product Details | |
| Size | 06 - 3/8 |
| Body Material | S - Steel |
| Options | A - Locking Handle |
| Series | BVMM |
| Ball Pattern | 1 - 2-Way |
| Ball and Stem Material | S - Steel |
| Ball Seals | 1 - Delrin |
| Maximum pressure | 414 Bar (6000 PSI) |
| Shaft Seals | N - Nitrile |
| Standard Handle | Steel Offset, Nickel Plated |
| Temperature Range with Standard Seals | -30°C to +100°C (-22°F to +212°F) |
| Spindle Material | Steel, Nickel Plated |
| Weights kg (lbs.) | 06 - 1.9 (4.25) |
| Standard Ball Seals | Delrin + MoS2 |
| Standard Shaft Seals | O-Ring & Backup, Nitrile |
