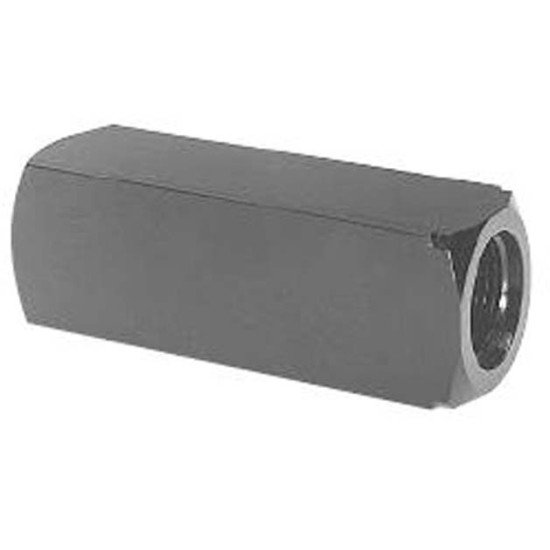

Actual product may vary from image shown.
Series C
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Series C
- MPN: C600S-M
Product Views: 1032
$95.86
Series C check valves permit free flow in one direction, and dependable shut-off in the reverse direction. Features: Stainless steel poppets standard. Soft seal poppets are standard in some variations. Triangular retainers guide the poppets, and hold the spring firmly in place even under high velocity and shock.
| Product Details | |
| Size | 600 *† - 3/8" |
| Design Series | M |
| Weight kg (lbs.) | 0.2 (0.5) |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel & Stainless Steel: 345 Bar (5000 PSI) for 200 thru 1220; 207 Bar (3000 PSI) for all other sizes and styles |
| Seal Compound | Omit - Nitrile (Standard) |
| Effective Control Flow Cv | 2.27 |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Maximum Flow LPM (GPM) | 30 (8) |
| Effective Orifice Area Control Flow in.2 | 0.099 |
| Poppets | Soft seal poppet is standard for 200 through 800/1020 size. For cracking pressures > 15 PSI, solid metal poppets are standard |
| Nominal Cracking Pressure | Standard: 0.4 Bar (5 PSI)|Optional: 1.38 Bar (20 PSI), 4.48 Bar (65 PSI) |
| B mm (Inches) | 69.9 (2.75) |
| C mm (Inches) | 25.4 (1.00) |
| D mm (Inches) | 12.7 (0.50) |
| A mm (Inches) | 3/8–18 NPTF |
| Series C | C |
| Cracking Pressure (nominal) | Omit - Standard 0.4 Bar (5 PSI) |
