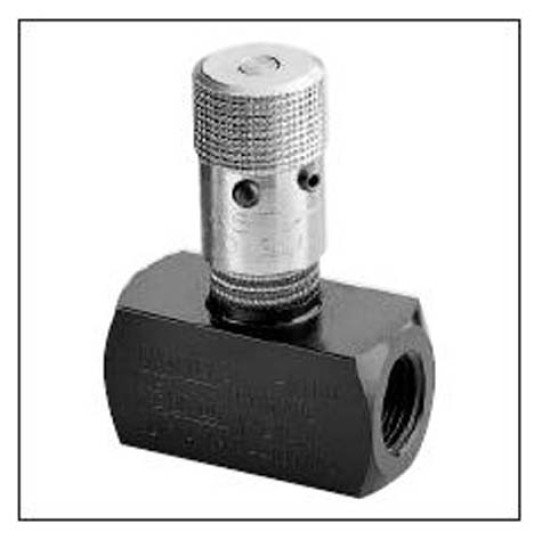

Actual product may vary from image shown.
Parker Series N
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Parker Series N
- MPN: N1200BF
Product Views: 861
$308.87
Series N needle valves are ideal as speed controls on hydraulic and pneumatic systems where a reverse flow check is not needed. They provide excellent control and a reliable shut-off in a very small envelope. Features: The exclusive “Colorflow” color-band reference scale on the valve stem is a great convenience and time-saver in setting the valve originally and in returning it to any previous setting. A simple set screw locks the valve on any desired setting. A tamperproof option (T) feature is also available to prevent accidental or intentional adjustment of flow setting.
| Product Details | |
| Material | B - Brass |
| Size | 1200 - 3/4" |
| Options | Omit - NPTF/SAE |
| Maximum Operating Pressure | Brass: 140 Bar (2000 PSI); except for N1600 brass which is 35 Bar (500 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Other Options | F - Finger Screw |
| Effective Control Flow Cv | 2.470 |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Max Flow LPM (GPM) | 95 (25) |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.1080 |
| Series N | N |
