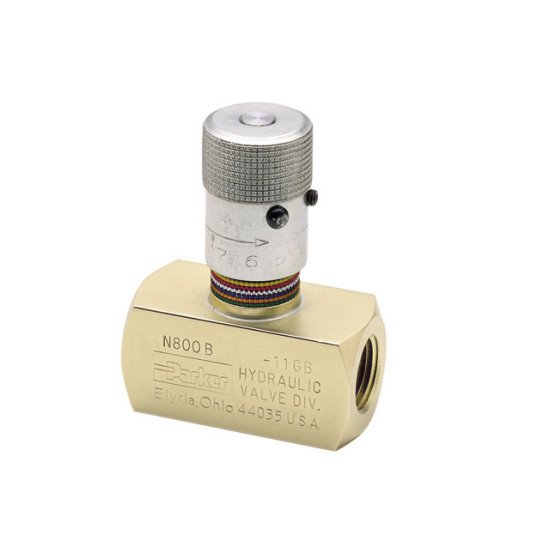

Actual product may vary from image shown.
Colorflow Needle Valve - SAE Parker Colorflow Needle Valve - SAE
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Colorflow Needle Valve - SAE
- MPN: N620ST
Product Views: 1133
$213.02
| Product Attributes | |
| Max Flow | 5 GPM (19 LPM) |
| Thread 1 | 6 SAE |
| Effective Orifice Area - Control Flow (in2) | 0.0194 |
| Effective Control Flow CV Factor | 0.443 |
| Material Poppet/Stem Seals | Nitrile |
| Valve Type | Needle Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 345 Bar (5000 PSI) |
| Thread 1 Type | SAE |
| Product Details | |
| Material | Steel |
| Size | 620 - #6 SAE |
| A | 9/16–18 UNF #6 SAE |
| Weight kg (lbs.) | 0.2 (0.5) |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel & Stainless Steel: 345 Bar (5000 PSI) for 200 thru 1220; 207 Bar (3000 PSI) for all other sizes |
| Seal Compound | Omit - Nitrile (Standard) |
| Other Options | T * - Tamperproof |
| Effective Control Flow Cv | 0.443 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Maximum Flow LPM (GPM) | 19 (5) |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.0194 |
| B mm (Inches) | 47.8 (1.88) |
| Series N | N |
| C mm (Inches) | 42.7 (1.68) |
| D mm (Inches) | 60.5 (2.38) |
| E mm (Inches) | 30.2 (1.19) |
| F mm (inches) | 25.4 (1.00) |
| G mm (Inches) | 12.7 (0.50) |
| H mm (Inches) | 20.6 (0.81) |
