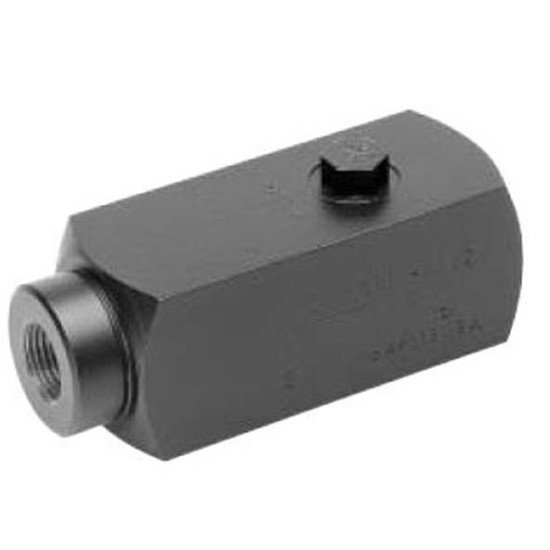

Actual product may vary from image shown.
Series PC*K Parker Series PC*K
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Series PC*K
- MPN: PCK1200S-20.0
Product Views: 1080
$857.38
| Product Attributes | |
| Mounting | In-line |
| Product Details | |
| Reverse Flow | 132 LPM (35 GPM) |
| Pressure Drop | PC*K1200S: 8 Bar (116 PSI) |
| Maximum Flow | 95 LPM (25 GPM) |
| A | 3/4–14 NPTF/1 1/16–12 UNF |
| Flowand | 20.00 (75.70) |
| Port size | 1200 - 3/4" |
| Weight kg (lbs.) | 1.50 (3.3) |
| Materials | S - Steel |
| Maximum Operating Pressure | 207 Bar (3000 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Pressure Compensated Flow Control | PC |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Reverse Check | Omit - Without |
| Minimum Pressure to Compensate | 10.4 Bar (150 PSI) |
| Fixed Flow | K |
| B mm (Inches) | 149.4 (5.88) |
| Minimum Flow | 10 LPM (2.5 GPM) |
| C mm (Inches) | 27.7 (1.09) |
| D mm (Inches) | 57.2 (2.25) |
| E mm (Inches) | 28.7 (1.13) |
| F mm (inches) | 63.5 (2.50) |
| G mm (Inches) | 6.4 (0.25) |
