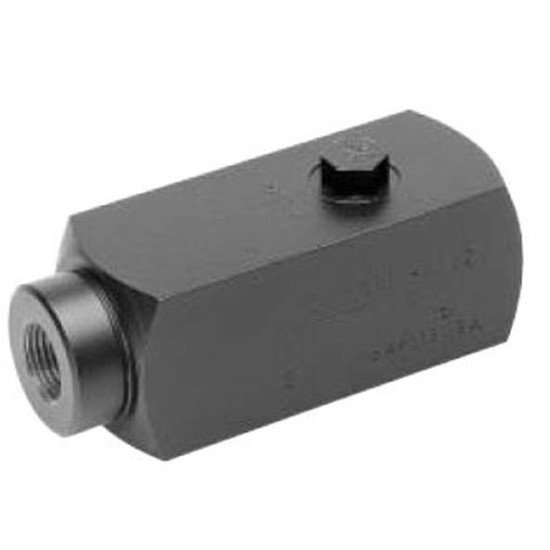

Actual product may vary from image shown.
Series PC*K
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Series PC*K
- MPN: PCK600S-1.00
Product Views: 1200
$442.00
| Product Attributes | |
| Mounting | In-line |
| Product Details | |
| Reverse Flow | 30 LPM (8 GPM) |
| Pressure Drop | 3 Bar (40 PSI) |
| Maximum Flow | 23 LPM (6 GPM) |
| A | 3/8–18 NPTF |
| Flowand | 1.00 (3.8) |
| Port size | 600 - 3/8" |
| Weight kg (lbs.) | 1.00 (2.1) |
| Materials | S - Steel |
| Maximum Operating Pressure | 207 Bar (3000 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Pressure Compensated Flow Control | PC |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Reverse Check | Omit - Without |
| Minimum Pressure to Compensate | 6.9 Bar (100 PSI) |
| Fixed Flow | K |
| B mm (Inches) | 105.7 (4.16) |
| Minimum Flow | 2 LPM (0.6 GPM) |
| C mm (Inches) | 30.2 (1.19) |
| D mm (Inches) | 38.1 (1.50) |
| E mm (Inches) | 19.1 (0.75) |
| F mm (inches) | 44.5 (1.75) |
| G mm (Inches) | 6.4 (0.25) |
