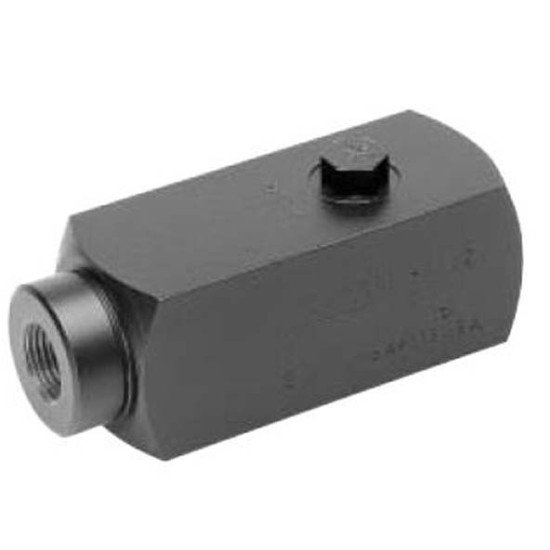

Actual product may vary from image shown.
Series PC*K Parker Series PC*K
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Series PC*K
- MPN: PCK620S-1.25
Product Views: 999
$354.13
| Product Attributes | |
| Mounting | In-line |
| Product Details | |
| Reverse Flow | 19 LPM (5 GPM) |
| Pressure Drop | 3 Bar (40 PSI) |
| Maximum Flow | 11 LPM (3 GPM) |
| A | 1/4–18 NPTF/9/16–18 UNF |
| Flowand | 1.25 (4.7) |
| Port size | 620 - #6 SAE |
| Weight kg (lbs.) | 0.03 (0.7) |
| Materials | S - Steel |
| Maximum Operating Pressure | 207 Bar (3000 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Pressure Compensated Flow Control | PC |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Reverse Check | Omit - Without |
| Minimum Pressure to Compensate | 6.9 Bar (100 PSI) |
| Fixed Flow | K |
| B mm (Inches) | 92.2 (3.63) |
| Minimum Flow | 1 LPM (0.3 GPM) |
| C mm (Inches) | 27.7 (1.09) |
| D mm (Inches) | 31.8 (1.25) |
| E mm (Inches) | 17.5 (0.69) |
| F mm (inches) | 38.1 (1.50) |
| G mm (Inches) | 6.4 (0.25) |
