Actual product may vary from image shown.

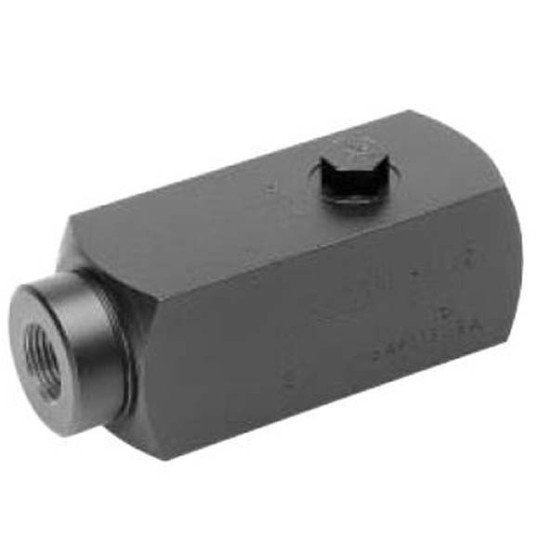

Series PC*K Parker Series PC*K
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Series PC*K
- MPN: PCK800S-12.0
Product Views: 1156
$565.81
| Product Attributes | |
| Mounting | In-line |
| Product Details | |
| Reverse Flow | 76 LPM (20 GPM) |
| Pressure Drop | PC*K800S: 8 Bar (116 PSI) |
| Maximum Flow | 57 LPM (15 GPM) |
| A | 1/2–14 NPTF/7/8–14 UNF |
| Flowand | 12.00 (45.42) |
| Port size | 800 - 1/2" |
| Weight kg (lbs.) | 1.50 (3.3) |
| Materials | S - Steel |
| Maximum Operating Pressure | 207 Bar (3000 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Pressure Compensated Flow Control | PC |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Reverse Check | Omit - Without |
| Minimum Pressure to Compensate | 6.9 Bar (100 PSI) |
| Fixed Flow | K |
| B mm (Inches) | 125.5 (4.94) |
| Minimum Flow | 6 LPM (1.5 GPM) |
| C mm (Inches) | 36.6 (1.44) |
| D mm (Inches) | 44.5 (1.75) |
| E mm (Inches) | 22.4 (0.88) |
| F mm (inches) | 50.8 (2.00) |
| G mm (Inches) | 6.4 (0.25) |
