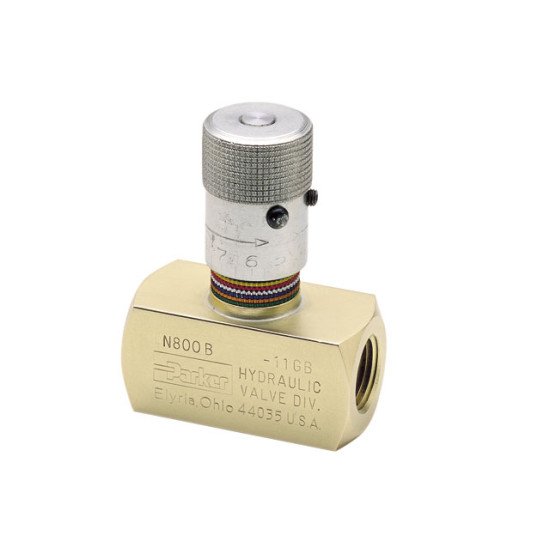

Actual product may vary from image shown.
Colorflow Needle Valve - BSPP
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Colorflow Needle Valve - BSPP
- MPN: 9N1200B
Product Views: 971
$392.74
| Product Attributes | |
| Max Flow | 25 GPM (95 LPM) |
| Thread 1 | 3/4 BSPP |
| Effective Orifice Area - Control Flow (in2) | 0.108 |
| Effective Control Flow CV Factor | 2.47 |
| Material Poppet/Stem Seals | Nitrile |
| Valve Type | Needle Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 140 Bar (2000 PSI) |
| Thread 1 Type | BSPP |
| Product Details | |
| Material | Brass |
| Size | 1200 * - 3/4" |
| A | 3/4–14 NPTF |
| Weight kg (lbs.) | 1.0 (2.2) |
| Materials | B - Brass |
| Maximum Operating Pressure | Brass: 140 Bar (2000 PSI); except for N1600 brass which is 35 Bar (500 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Other Options | Omit - Standard Knob |
| Effective Control Flow Cv | 2.47 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Maximum Flow LPM (GPM) | 95 (25) |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.108 |
| B mm (Inches) | 85.9 (3.38) |
| Series N | N |
| C mm (Inches) | 71.4 (2.81) |
| D mm (Inches) | 82.6 (3.25) |
| E mm (Inches) | 41.1 (1.62) |
| F mm (inches) | 38.1 (1.50) |
| G mm (Inches) | 19.1 (0.75) |
| H mm (Inches) | 35.1 (1.38) |
