Actual product may vary from image shown.

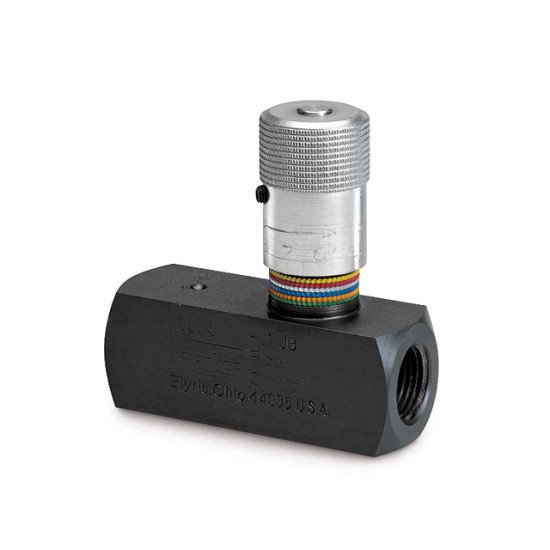

Colorflow Flow Control Valve - NPT Parker Colorflow Flow Control Valve - NPT
Door to Door International Shipping
Ships from U.S.A.
- Stock: Ask for Lead Time
- Brand: Parker
- Model: Colorflow Flow Control Valve - NPT
- MPN: F200S-V
Product Views: 1036
$119.82
| Product Attributes | |
| Max Flow | 3 GPM (11 LPM) |
| Thread 1 | 1/8 NPT |
| Effective Orifice Area - Control Flow (in2) | 0.0102 |
| Effective Control Flow CV Factor | 0.23 |
| Material Poppet/Stem Seals | Fluorocarbon |
| Valve Type | Flow Control Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 345 Bar (5000 PSI) |
| Thread 1 Type | NPT |
| Poppet Type | Solid Metal |
| Product Details | |
| Material | Steel |
| Free Flow Rate | 11 (3) |
| Size | 200 * - 1/8" |
| Free Flow Orifice Area (in2) | 0.023 |
| Free Flow CV Factor | 0.53 |
| Series | F |
| Materials | S - Steel |
| Maximum Operating Pressure | Steel & Stainless Steel: 345 Bar (5000 PSI) for 200 thru 1020; 207 Bar (3000 PSI) for all other sizes |
| Seal Compound | V - Fluorocarbon (Standard on Stainless Steel) |
| Other Options | Omit - Standard Knob |
| Effective Control Flow Cv | 0.230 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Temperature Range of Seal Compound | -26°C to +205°C (-15°F to +400°F) Fluorocarbon |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.0102 |
| Poppets | Solid metal 416 stainless steel poppet on all other sizes and styles |
| Nominal Cracking Pressure | 0.4 Bar (5 PSI) standard |
| Free Flow Orifice Area in. 2 | 0.023 |
| Free Flow Cv | 0.53 |
