Actual product may vary from image shown.

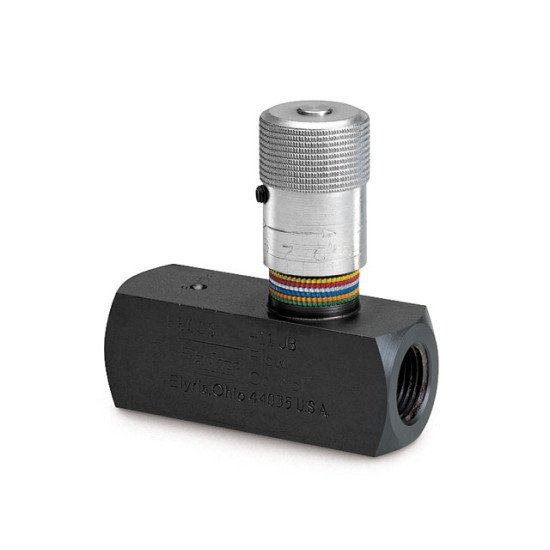

Colorflow Flow Control Valve - NPT
Door to Door International Shipping
Ships from U.S.A.
- Stock: 1-2 Weeks
- Brand: Parker
- Model: Colorflow Flow Control Valve - NPT
- MPN: F800BT
Product Views: 1096
$331.50
| Product Attributes | |
| Max Flow | 15 GPM (57 LPM) |
| Thread 1 | 1/2 NPT |
| Effective Orifice Area - Control Flow (in2) | 0.0427 |
| Effective Control Flow CV Factor | 0.976 |
| Material Poppet/Stem Seals | Nitrile |
| Valve Type | Flow Control Valve |
| Trade Name | Colorflow |
| Configuration Type | Female to Female |
| Max Pressure | 140 Bar (2000 PSI) |
| Thread 1 Type | NPT |
| Poppet Type | Solid Metal |
| Product Details | |
| Material | Brass |
| Free Flow Rate | 57 (15) |
| Size | 800 *† - 1/2" |
| Free Flow Orifice Area (in2) | 0.224 |
| Free Flow CV Factor | 5.11 |
| Series | F |
| Materials | B - Brass |
| Maximum Operating Pressure | Brass: 140 Bar (2000 PSI); except for F1600 brass which is 35 Bar (500 PSI) |
| Seal Compound | Omit - Nitrile (Standard) |
| Other Options | T * - Tamperproof |
| Effective Control Flow Cv | 0.976 |
| Parker Group | Hydraulic |
| Parker Division | Hydraulic Valve |
| Temperature Range of Seal Compound | -40°C to +121°C (-40°F to +250°F) Nitrile (standard) |
| Needle Options | Omit - Standard |
| Effective Orifice Area Control Flow in.2 | 0.0427 |
| Poppets | Soft seal poppet in brass 200 - 820 sizes |
| Nominal Cracking Pressure | 0.4 Bar (5 PSI) standard |
| Free Flow Orifice Area in. 2 | 0.224 |
| Free Flow Cv | 5.11 |
